Description
Introduction
FDU series pump are made of ultra-high molecular weight polyethylene (UHMWPE), which has excellent corrosion resistance, erosion resistance (best in plastic) and anti-impact property. There are different type of seals for selection, such as mechanical seal, dynamic seal and packing seal, which are able to meet for pumping different kind of acid or alkaline. The FDU pumps display its excellent properties when pumping hydro-fluoric acid, phosphoric acid, mixed acid, electrolytes, hydrochloride acid, diluted sulphur acid, concentrated alkaline, which contain high percentage of solid particles.
The working temperature of the FDU pumps is -50〜100ºC. This temperature can be increased to 120 ºC if the impeller and the casing of the pump are replaced with the ones made of PVDF or CPE.

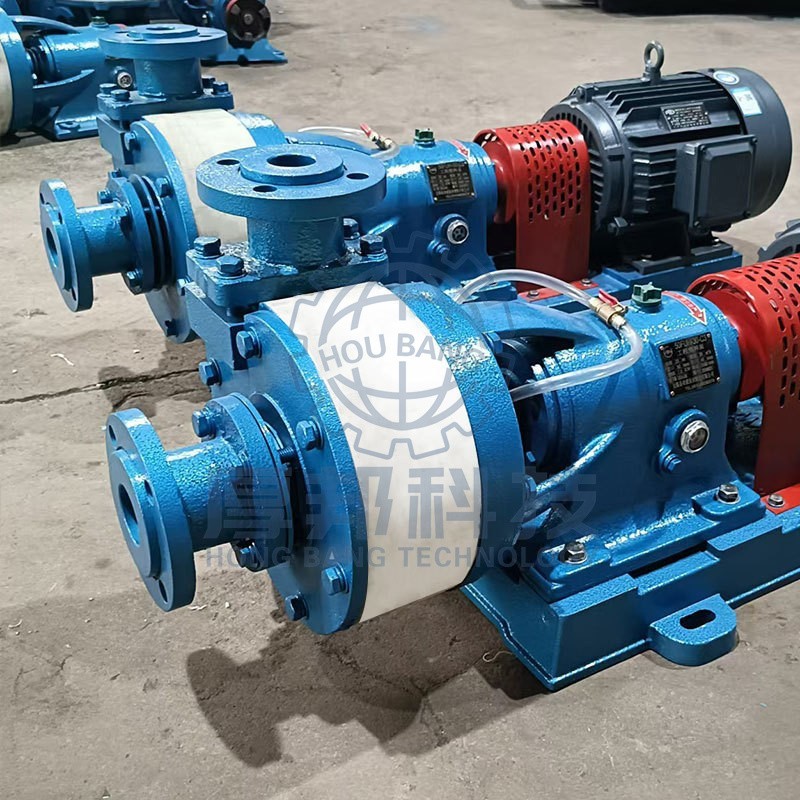

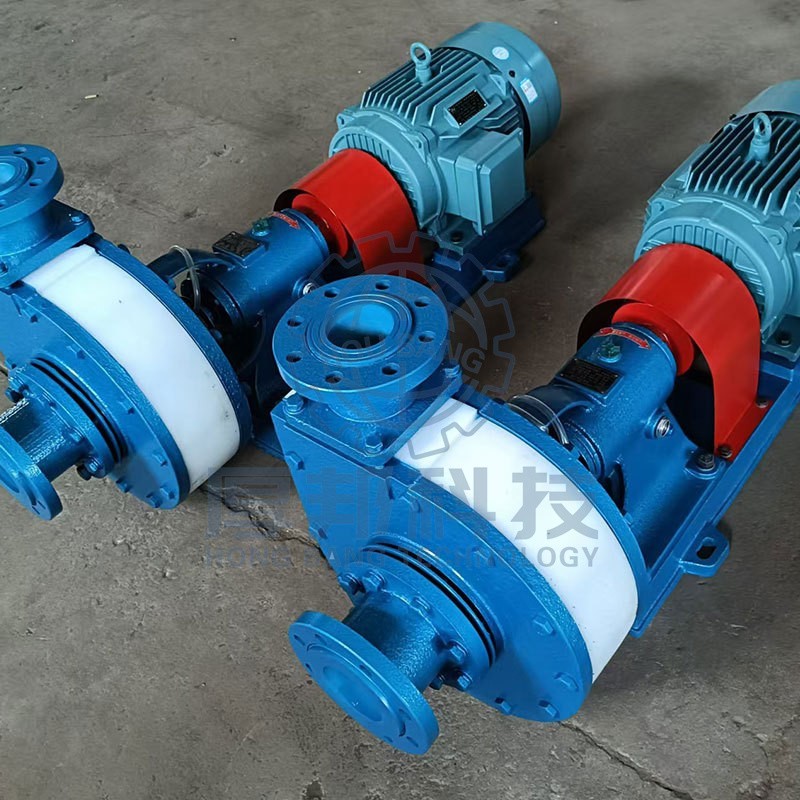

The FDU series pumps are horizontal single stage, single suction centrifugal pump with bearing frame.
Properties
Outlet diameter: 25mm - 80mm
Flow rate: 3.6m³/h - 100.8m³/h
Head: 13m - 120m
Suction power: 0.713kw - 14.73kw
Speed: 2900r/min,1450r/min
Submerged length: 500mm - 2500mm
Motor power: 1.5kw - 1000kv
Material:
Medium temperature: 50℃~100℃
Pressure：1.6Mpa
Feature
1.FUH all-plastic corrosion-resistant and wear-resistant pump is mainly applied to various liquids such as acids, alkalis, salts, oils, food and beverages, and alcoholic beverages.
2. It is specifically applied to various clear liquid or slurry positions of sulfuric acid, salt, acid, alkali, oil, etc. in the chemical industry.
3. In the non-ferrous smelting industry, especially in the hydrometallurgical processes of lead, zinc, gold, silver, copper, cobalt, tungsten, rare earths, etc., various media such as acid solutions, ore slurries, slurry (used in filter presses), electrolytes, and wastewater;
4. Media such as dilute acid (for pickling process), mother liquor, hydrofluoric acid, fluosilicic acid, seawater and phosphoric acid slurry in the fertilizer industry;
5. Various types of wastewater in the water treatment and environmental protection industries (such as food wastewater, electroplating wastewater, leather wastewater, pharmaceutical wastewater, papermaking wastewater, textile wastewater, electronic wastewater, etc.) and desulfurization and dust removal;
6. Sulfuric acid and salt acid positions in the pickling system of the steel industry; Acid hydrolysis, sedimentation, freezing, hydrolysis, water washing and salt treatment in the titanium white powder industry; Acid stations in the chemical fiber industry
7. Positions such as fermentation, neutralization, filtration, wastewater treatment of citric acid, and the manganese industry of ferrous metals, etc.

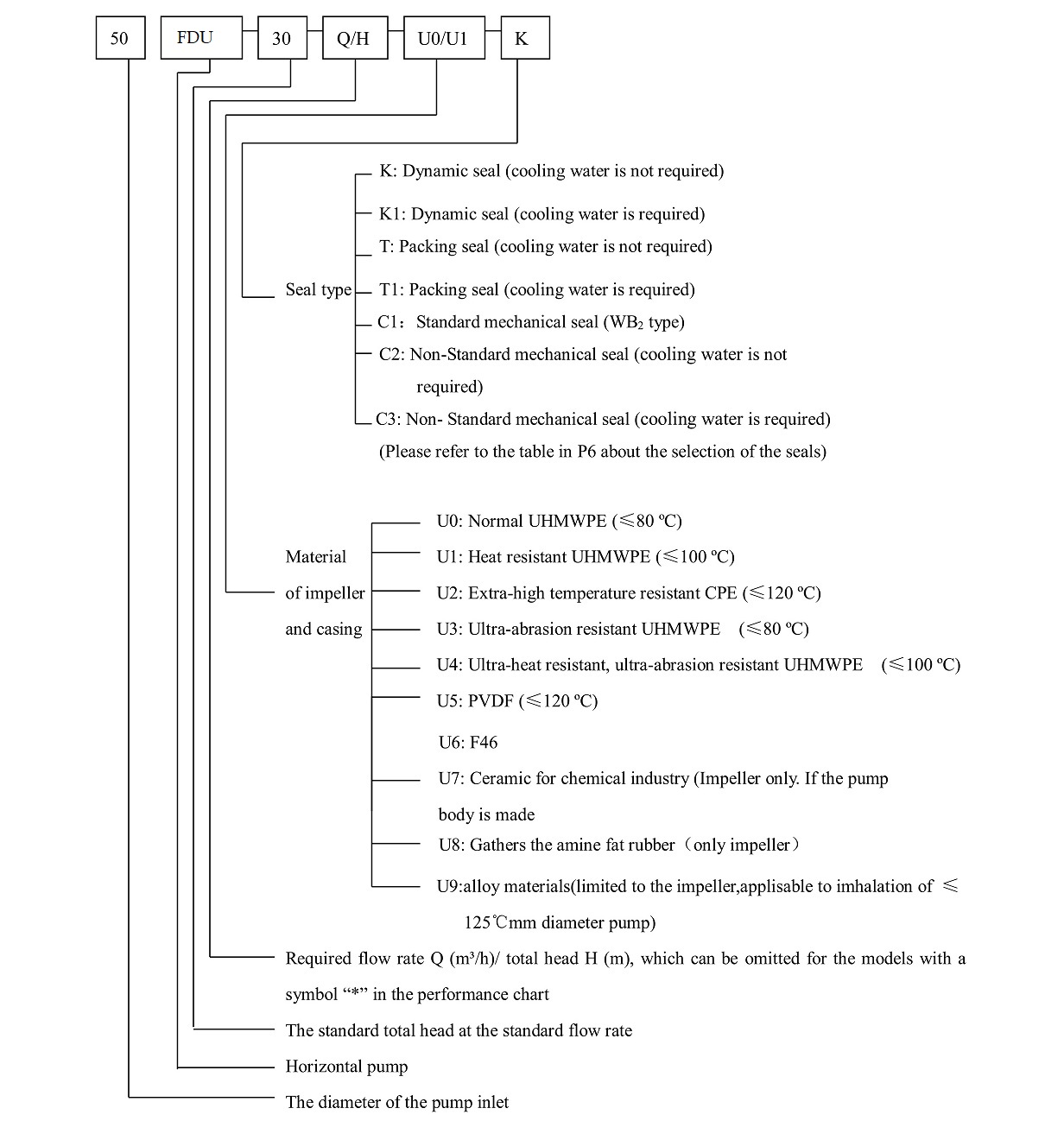

Model Code
Technical Specification：
