Description

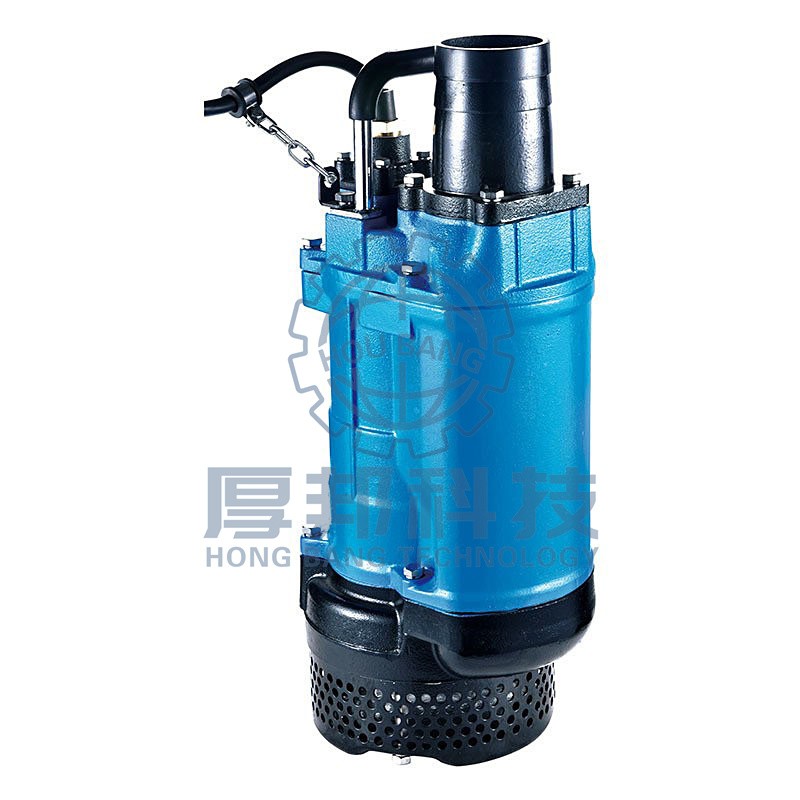

Introduction
The body of motor and pump is made of rigid cast iron for long-lasting durability.
Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure.
Semi-open impeller made of high chrome alloy matching with wear plate (ductile iron) achieves superior durability.
Effective motor cooling due to discharge channel cast as part of the motor housing. Top outlet design saves space required for installation.
Discharge 50mm(2'') to 150mm(6''), motor 1.5kW (2HP) to 15 kW (20HP).
Properties
Drive :Electric
Flow rate: 160m3/h
Head：57m
Motor power: 1.5 kw - 15kw
Speed: 1450r/min
Outlet diameter: 50mm - 150mm
Material:Cast iron
Medium temperature: 0℃~40℃
Application
- Civil engineering
- Mines, quarries, coal ore & slurries
- Sewage treatment plants
- General pumping purposes

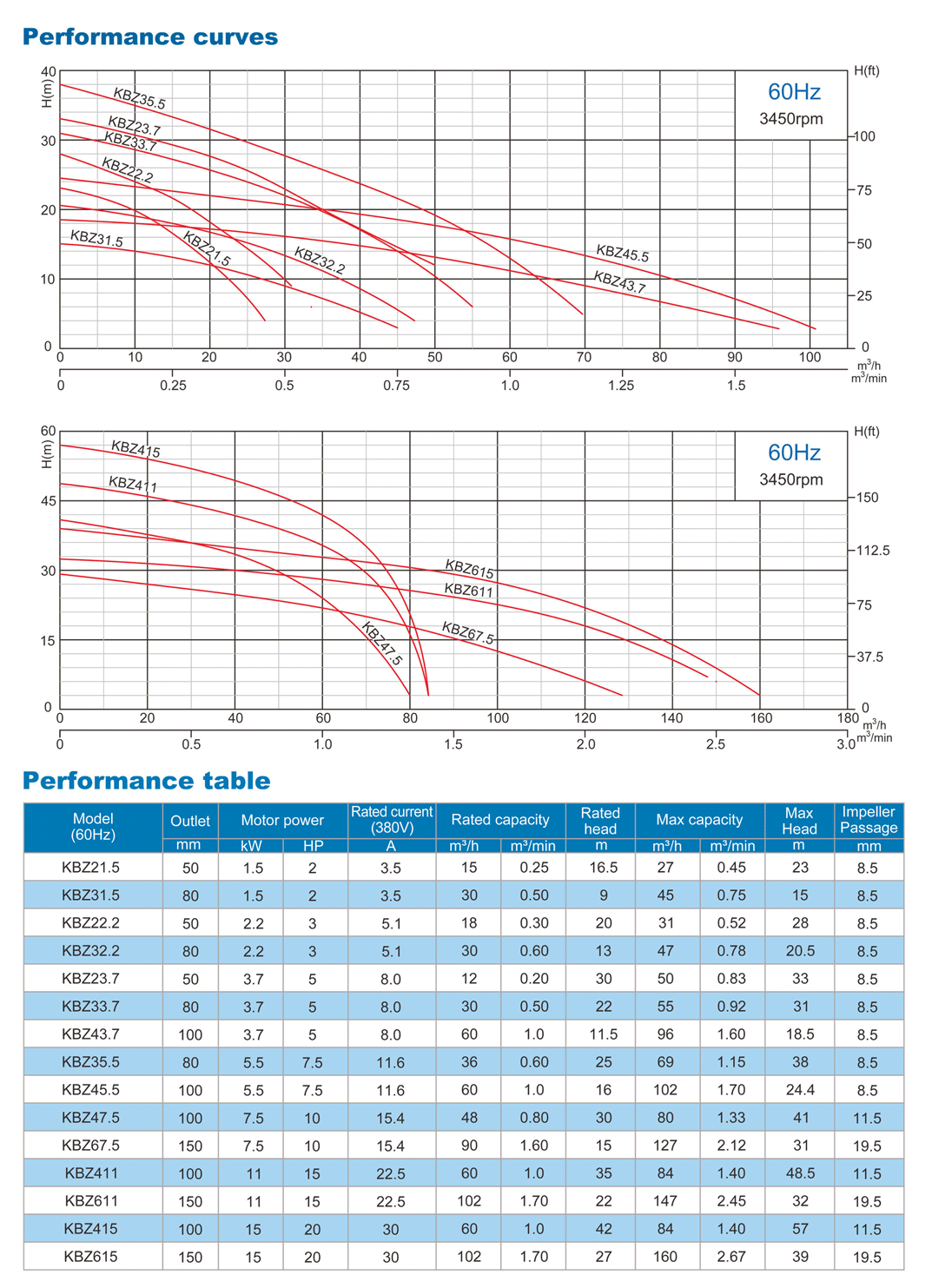

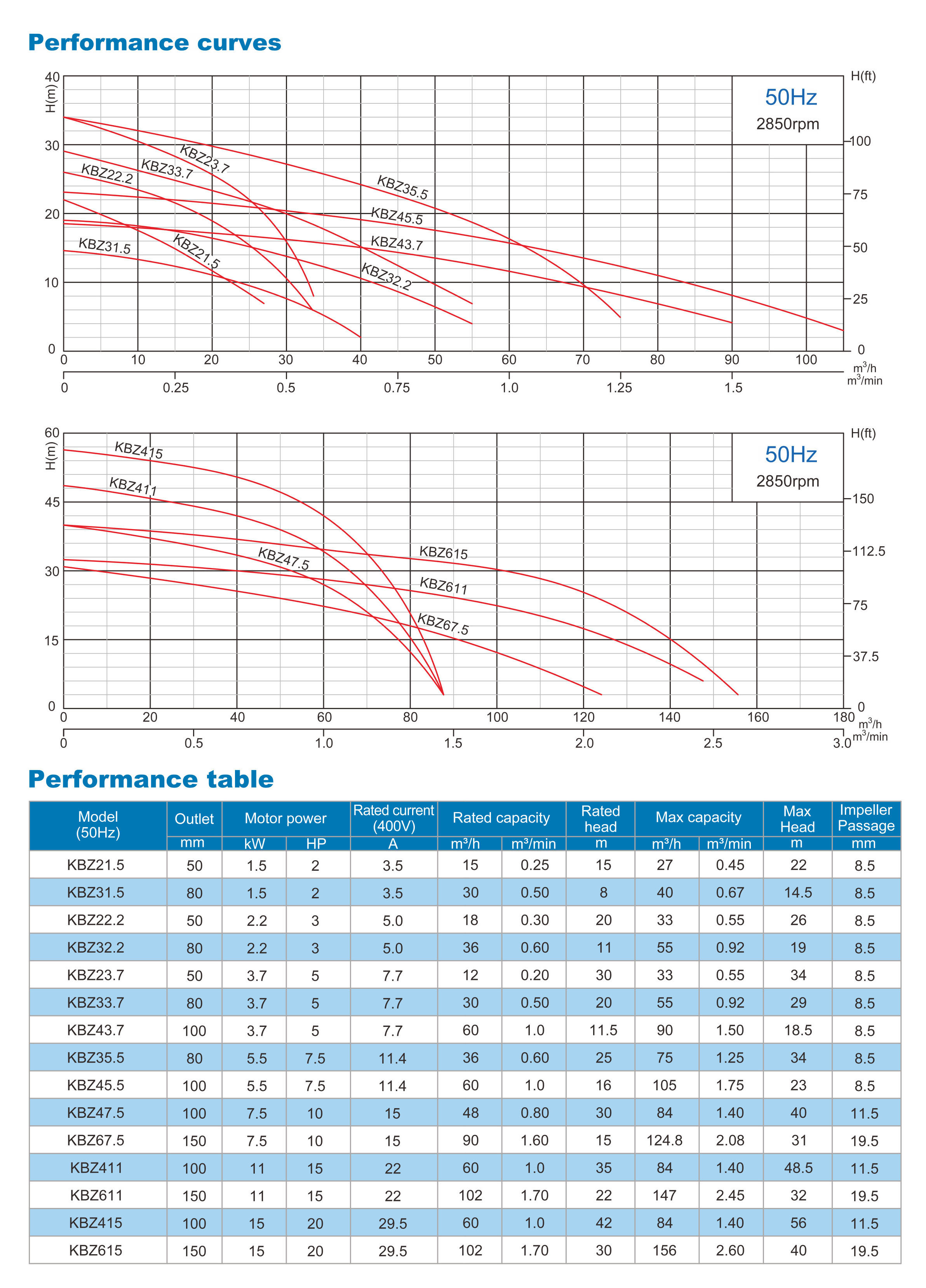

Technical Specification：
