Description
Introduction

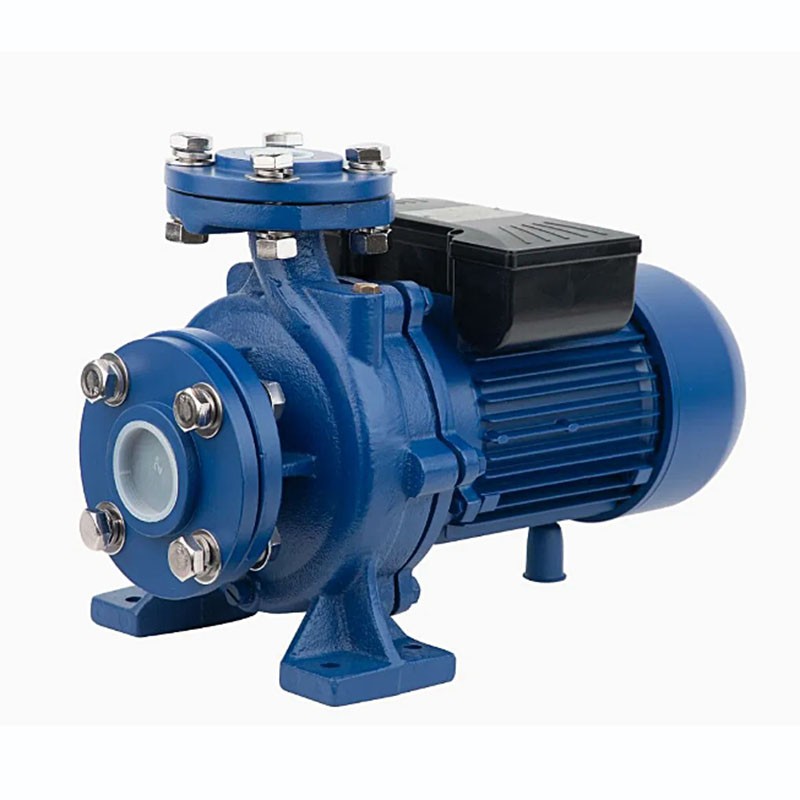

CM series is made up of single stage electric monobloc pumps with a flanged hydraulic/motor connection. The pump Inlet and outlet DN is manufactured in accordance with the provisions of DN in compliancewith EN 733 (ex DIN 24255) and UNI 7467 Flanges in compliance with UNI 2236 and DIN 2532 standards.
The pumps may be installed in all positions, except where the suction point is directed downwards.
The design of these machines allows the rotating parts and the motor to be removed from the pump casing without having to disconnect the pipes. Thus any maintenance is easily and quickly performed.
Performance
Flow:up to 220m³ / h;
Head up to 95m;
Speed:2950rpm
Temperature -10 ° C; - 90 ° C';
Installation : Horizontal ;
Material: HT200;
Maximum operating pressure: 12 bar (PN12);
Anti-clockwise rotation when facing pump's suction port;
Impeller: AISI304/HT200;
Mechanical seal in compliance with DIN 24960;
Feature
- Single-impeller centrifugal pump featuring axial intake and radial discharge;
- Inlet and outlet DN in compliancewith EN 733 (ex DIN 24255) and UNI 7467
- Flanges in compliance with UNI 2236 and DIN 2532 Rear entry (impeller, motor can be extracted withoutdisconnecting the pump body from the pipes)
Application
- Water Supply: Filtration and transportation at water plants, pressure boosting in main pipelines, pressure boosting in high-rise buildings and hotels;
- Industry: Cleaning and flushing systems, boiler feed water, cooling water circulation, water treatment systems, equipment supporting systems;
- Water Treatment: Ultrafiltration systems, reverse osmosis systems, distillation systems, separators, swimming pools, air conditioning systems, heating systems, agricultural irrigation, fire protection systems.
Technical Specification
