Description
Introduction

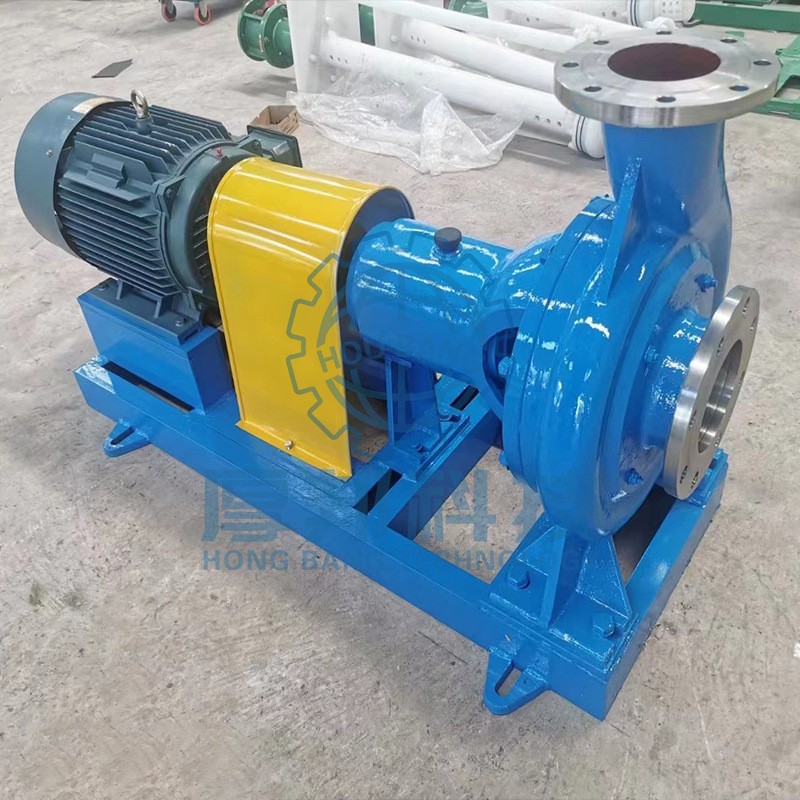

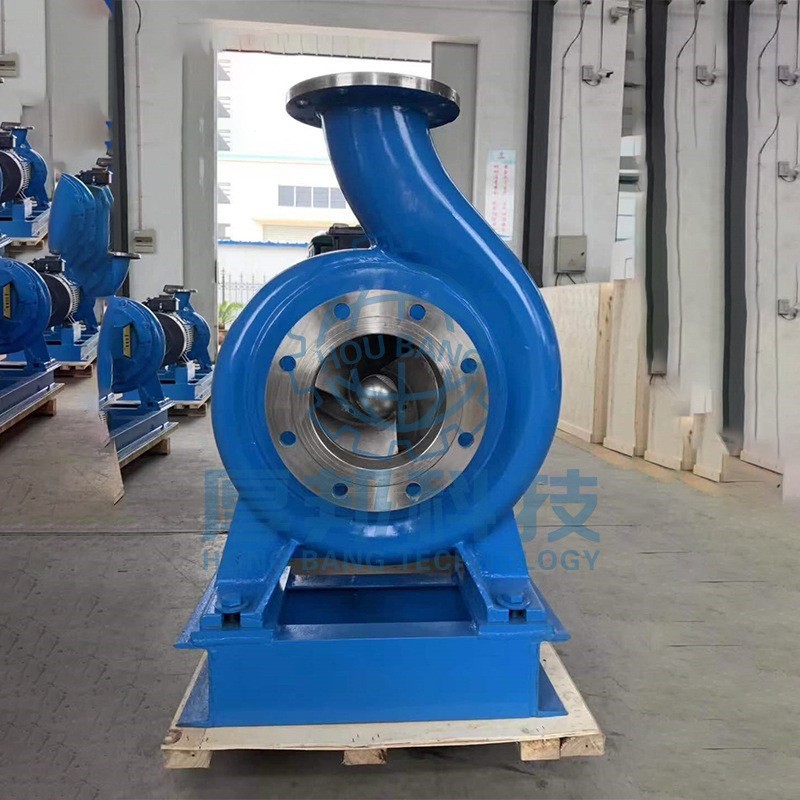

CZ series chemical process pumps are horizontal, single-stage, single-suction centrifugal pumps. Their dimensions and performance comply with the standards of DIN24256/ISO5199/GB/T5656.
CZ series chemical process pumps also follow the relevant design standards such as ASME/ANSIB73.1M and API610. By absorbing the advanced technologies of similar products from both domestic and foreign sources and combining with practical applications, they have innovatively designed a highly reliable standard chemical process pump.
Performance
Aperture: DN32-300(350)mm
Flow :up to 2000m'/h
Head:up to 160m
Working pressure:2.5MPa
Working temperature:-30℃-+170℃
Materials : ZG230-450, 304, 304L, 316, 316L, 904, 904L.
• Refineries, petrochemical industry, coal processing and low temperature engineering
• Chemical industry, fiber and general processing industries, particularly in paper and pulp industries, sugar industry and
clean water applications, particularly seawater desalination plants
• Heating and air-conditioning
• Fossil power stations
• Environmental protection
• Engineering and in automotive industries
• Marine and offshore applications

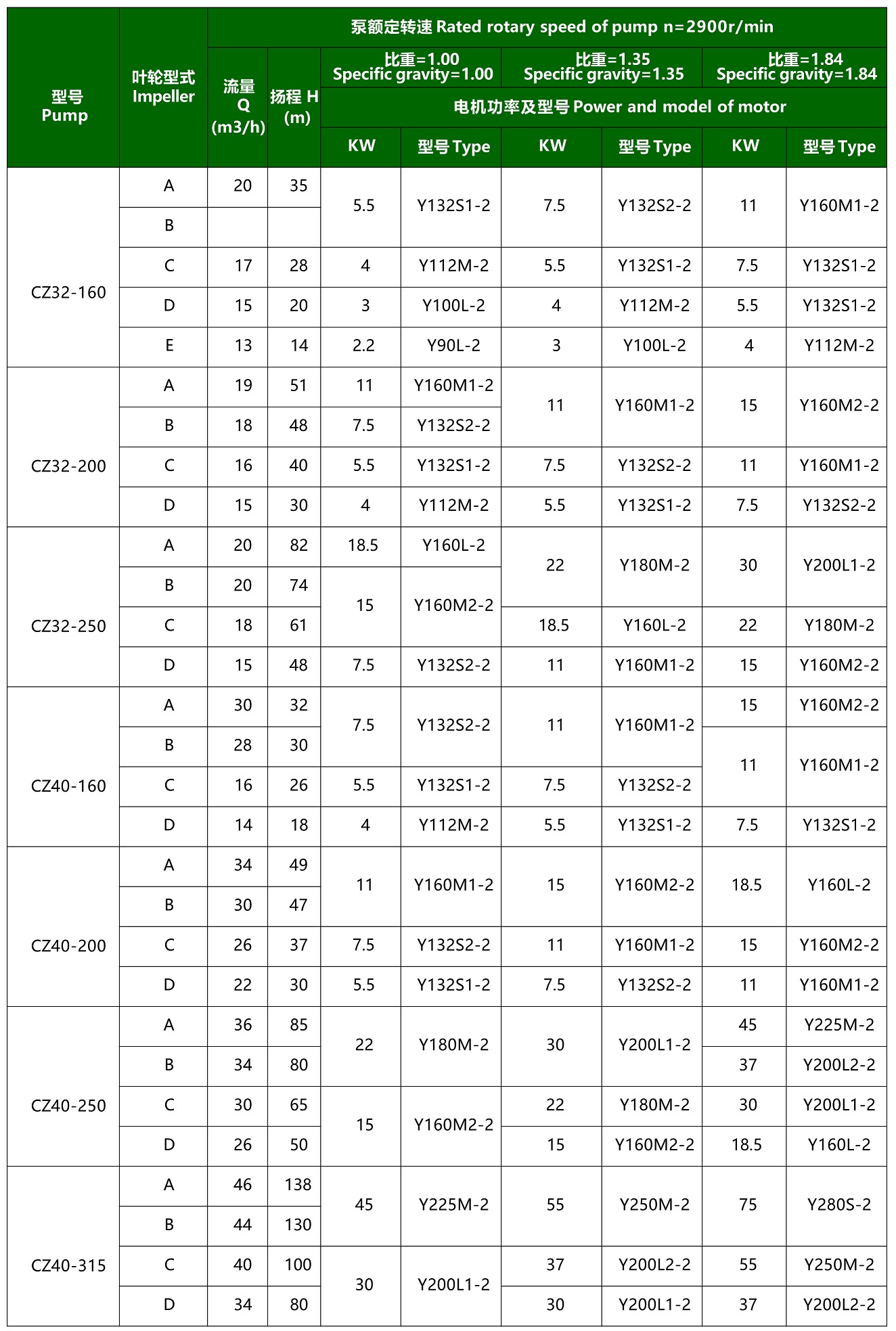

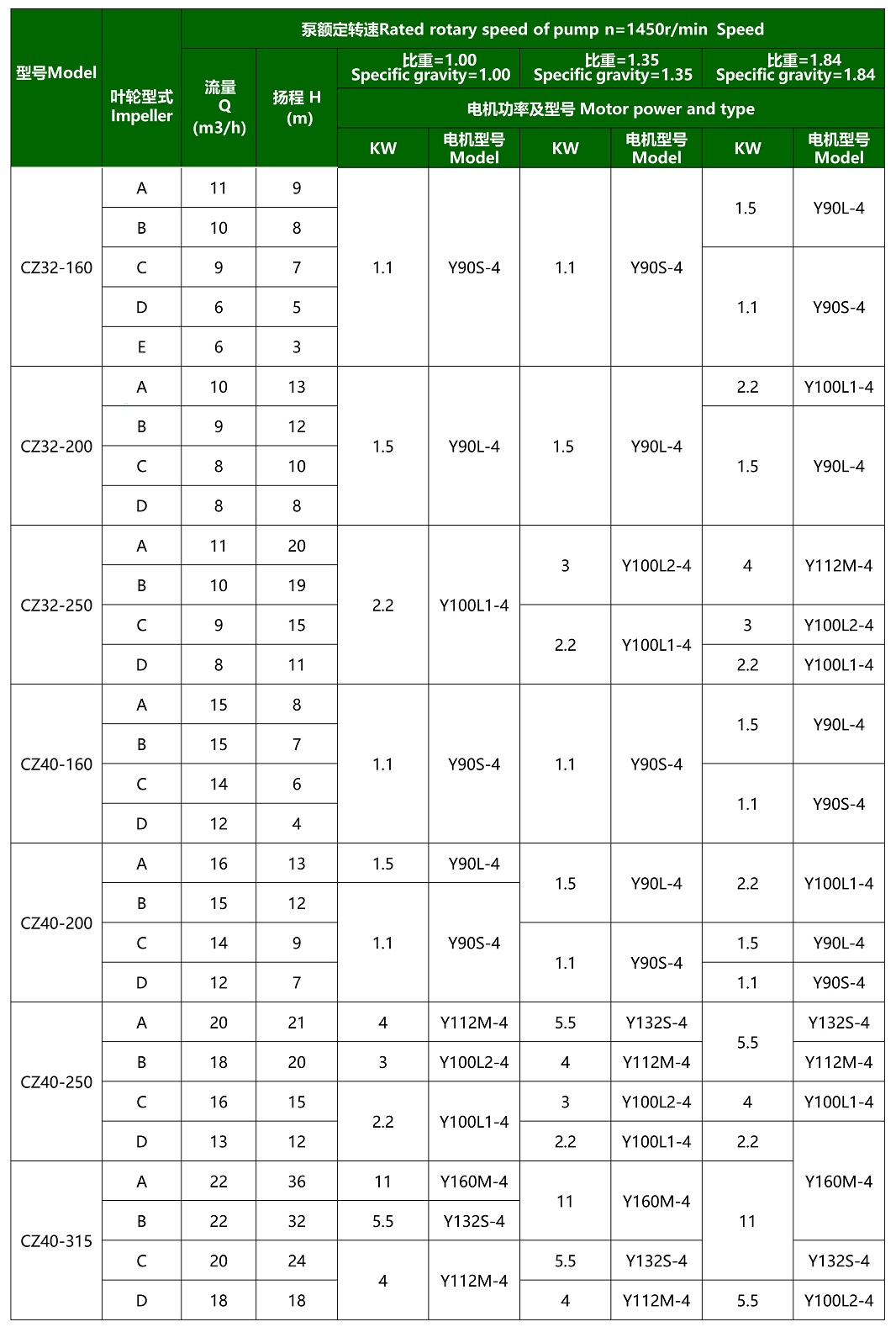

Technical Specification：
