Description
Introduction
LYB series vertical arc gear pump is an improved version of YCB gear pump. LYB vertical gear pump is suitable for the transport of solid particles and fibers, non-corrosive, viscosity of 5×10-6 ㎡/s (5-1500CST) lubricating oil or other liquids similar to the nature of lubricating oil and hydraulic transmission system. Reduce the speed of the pump, and the viscosity of the conveying medium can reach 5×104cSt.
LYB series vertical circular arc gear pump is suitable for transporting crude oil, heavy oil, diesel oil, machinery oil, vegetable oil and other liquids with similar properties, with oil temperature below 200℃, non-corrosive, free of hard particles and fibers. It is widely used in petroleum, chemical industry, steel, metallurgy, mining, power station, environmental protection and other industries such as compressors, freezers, ships and other large mechanical equipment forced lubrication and various mechanical equipment in the thin oil station system long-term continuous work occasions.
LYB series vertical circular arc gear pump is mainly composed of gear, shaft, pump body, safety valve, shaft end seal and other components, gear has high hardness and strength after heat treatment, all the moving parts in the pump are lubricated by its conveying medium.
Specification
Viscosity:(5-1500cSt)
MAX. Temperature:300 degrees
Pressure:0.6-1.6Mpa
Speed:910-1770r/min
Capacity:0.6-97m³/h

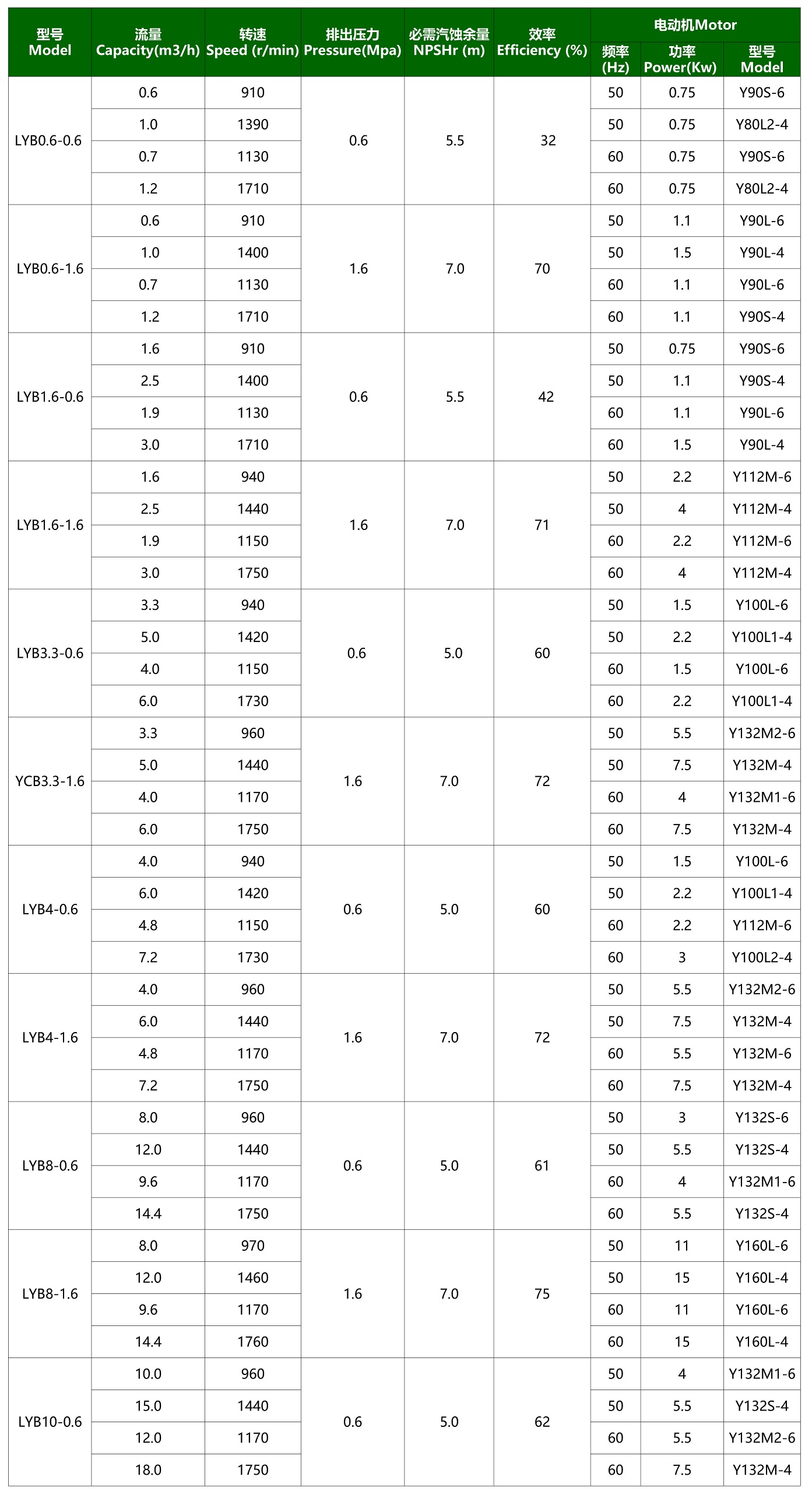

Technical Specification
