Description
Introduction
D type horizontal multistage centrifugal pump is a single-suction multistage segmental-type centrifugal pump for conveying water or other liquids similar to water in physical and chemical properties. The temperature of the liquid shall not exceed 80℃. It has the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long life, convenient installation and maintenance, etc. It can also be used to transport hot water, oil, corrosive or abrasive media by changing the material of pump flow parts, sealing form and increasing the cooling system.
D type horizontal multistage centrifugal pump is such that when viewed from the coupling end, the suction section flange is on the right and the discharge section flange is upward; when viewed from the pump end towards the coupling, the pump rotates clockwise.
Performance
Flow: 25-500 m3/h
Head: 60-1798 m
Power: 3-1120 kw
Speed: 1450-2950 r/min
Liquid temperature: 0 - 80℃
Voltage: 380V, 6KV or 10KV/IMB3
Material: HT200, HT250, QT600, ZG, 304, 316, 316L, 317L, 904L, CD4-MCu
Structure Chart

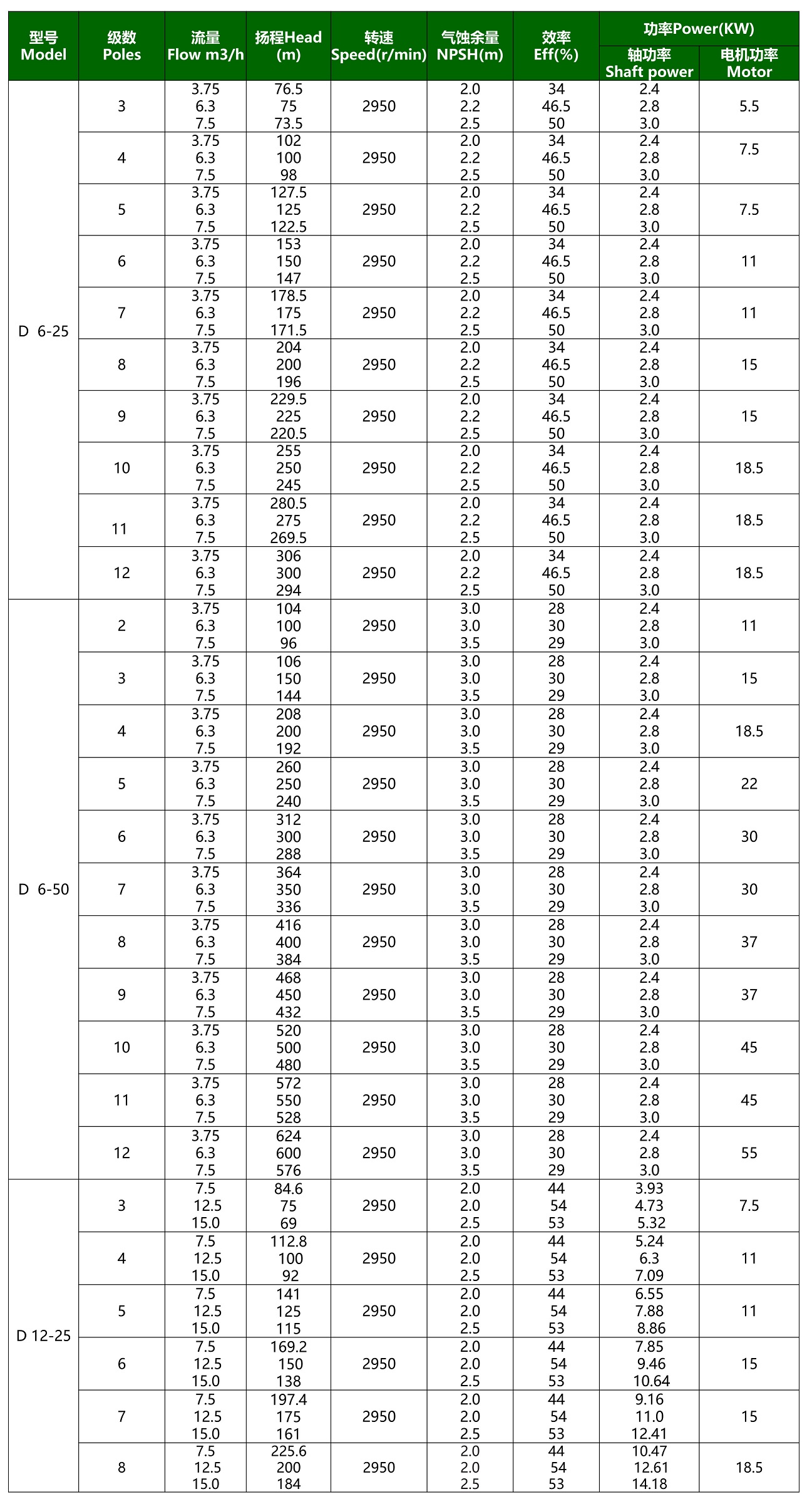

Technical Specification
