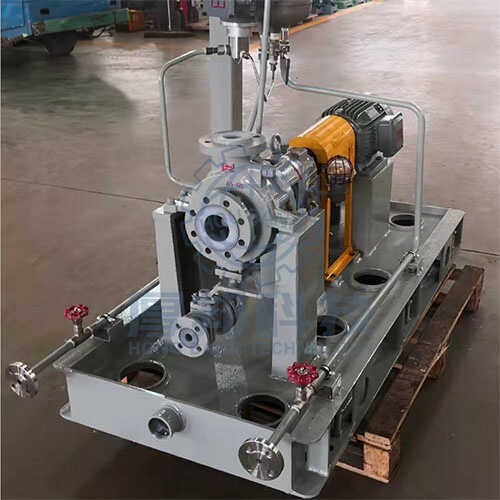

ZA/ZE Series Chemical Process Pump

Payment Type:T/T,Paypal,Western Union

Incoterm:FOB,EXW,

Min. Order: piece/pieces

Delivery Time: 7 Days

Description

Introduction:

ZA/ZE series petrochemical process pump designed and manufactured by API610 and VDMA24297(light/medium) specification. The za/ze chemical process pump is single, single, radial, horizontal centrifugal pump, axial suction and radial discharge. The za type pump is supported by the foot support and ze pump.

This type pump has the characteristics of high efficiency, energy efficiency, stability, wide range of adaptation and easy maintenance. From the motor end, the rotation of the pump is rotating in the direction of the needle.

ZA: Bottom foot support single-stage cantilever centrifugal pump;ZE: Centerline support single-stage cantilever centrifugal pump

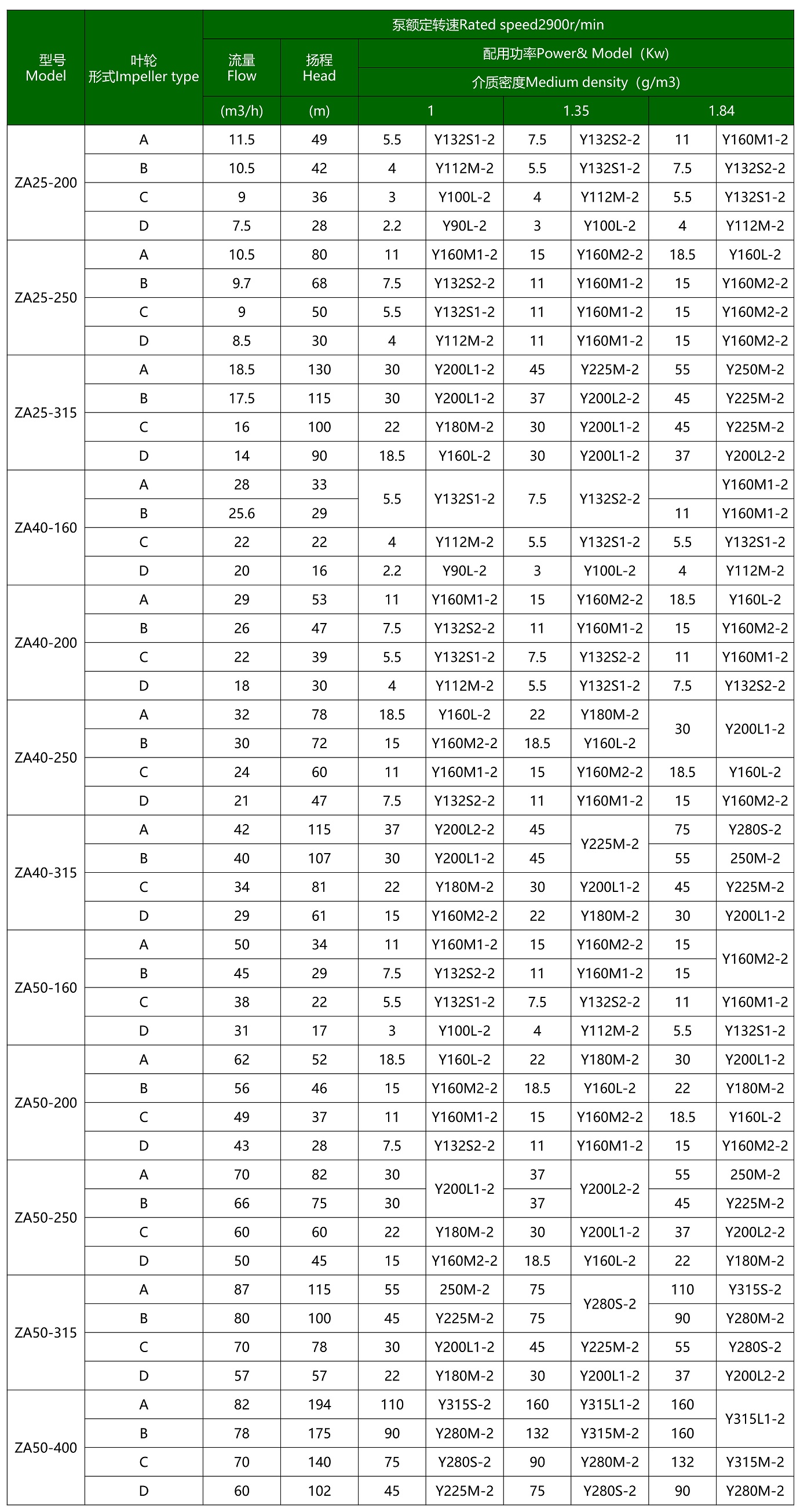

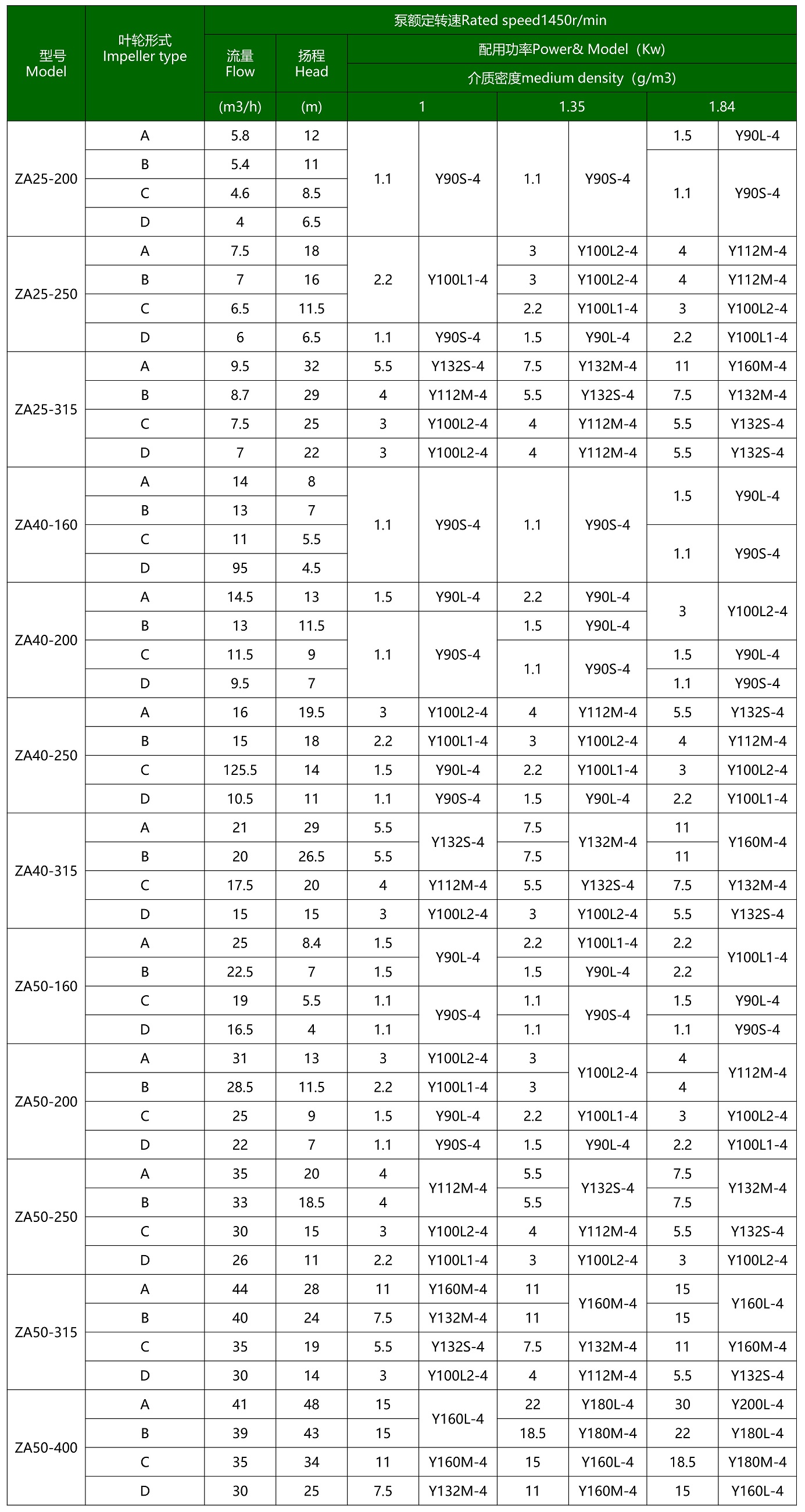

Performance:

Diameter: 25 - 400mm

Flow range (Q): 9 - 2600m3/h

Head range (H): 8 - 300m

Environmental temperature (℃): ≤ 40℃

Medium temperature (℃): -20℃ to +140℃

Medium density (ρ): ≤ 0.03kg/m3

Rotation speed (r/min): 1450 - 2900r/min

System maximum working pressure (Mpa): ≤ 2.5Mpa(ZA) , ≤ 5.0Mpa(ZE)

Application:

Oil refinery, petrochemical industry, coal processIndustry and sub-zero engineering;
Chemical industry, paper making, paper pulp, sugarrefinery and common process engineering;
Water works, sea water desalt plant;
Warming and air-conditioning system;Power plant;
Environmental protection project;
Ship and maritime industry and so on;
