Introduction

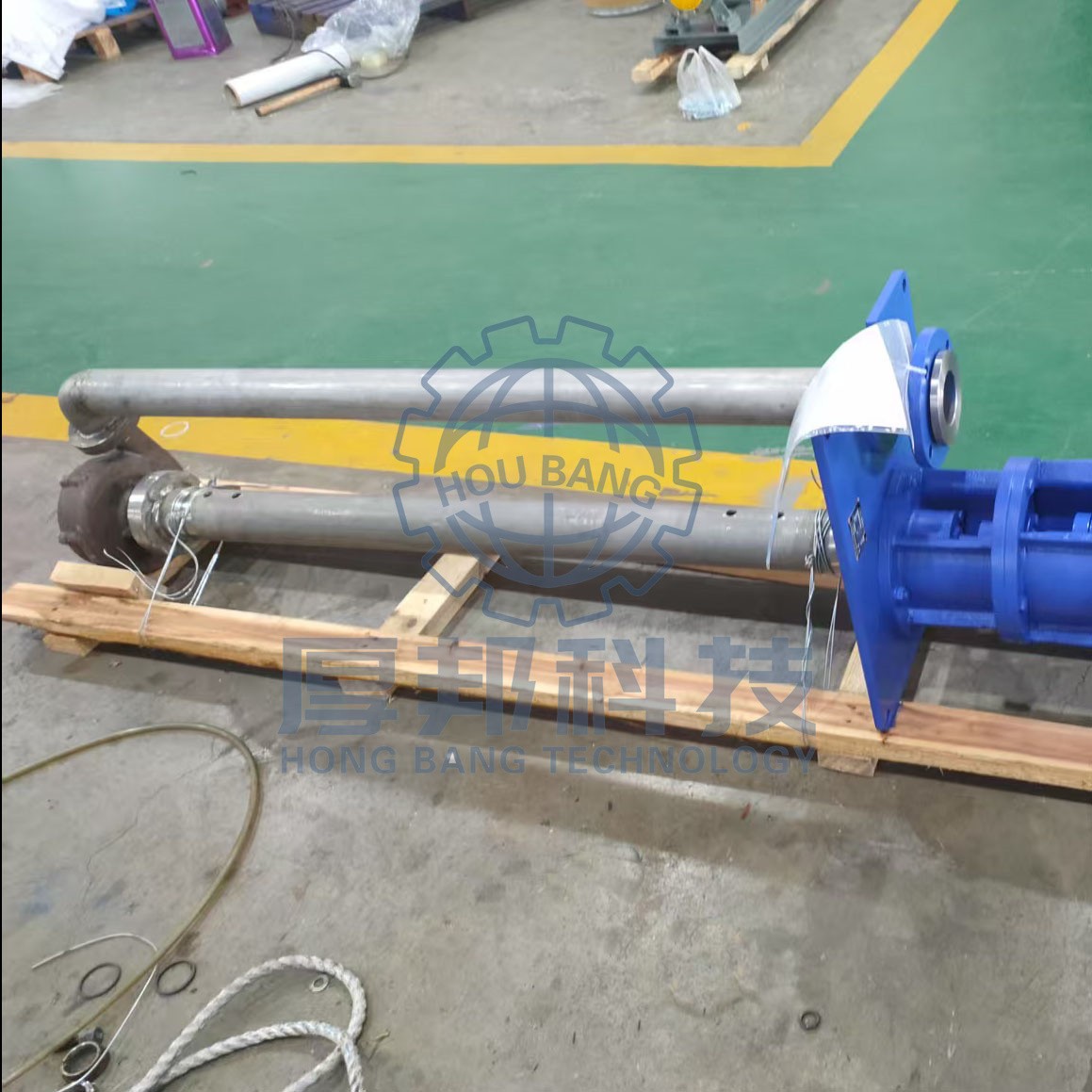

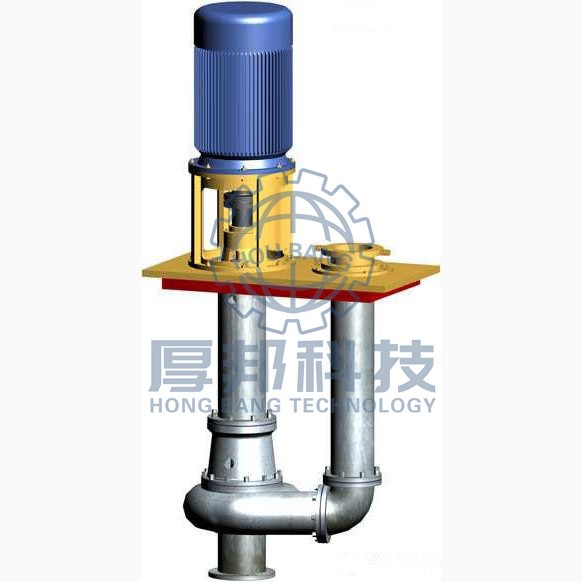

GBY series submersible pumps are new types of concentrated sulfuric acid submersible pumps designed based on the performance parameters of the FY submersible pumps and with material improvements. Compared with the traditional domestic concentrated sulfuric acid pumps, these pumps have unique features and are of lower cost. They are the best choice for the drying towers and absorption towers' circulating sulfuric acid pumps in sulfuric acid production.
Outlet diameter: 25mm - 80mm
Flow rate: 3.6m³/h - 100.8m³/h
Head: 13m - 41m
Suction power: 0.713kw - 14.73kw
Speed: 2900r/min
Submerged length: 500mm - 6000mm
Motor power: 1.5kw - 30kw
Applicable media: Drinking water, seawater, corrosive media, oil and gas, gas transportation
Voltage: 380v
Material: Cast steel, cast iron, stainless steel, alloy
Medium temperature: 60℃~80℃
Sulfuric acid concentration: 80% - 98%

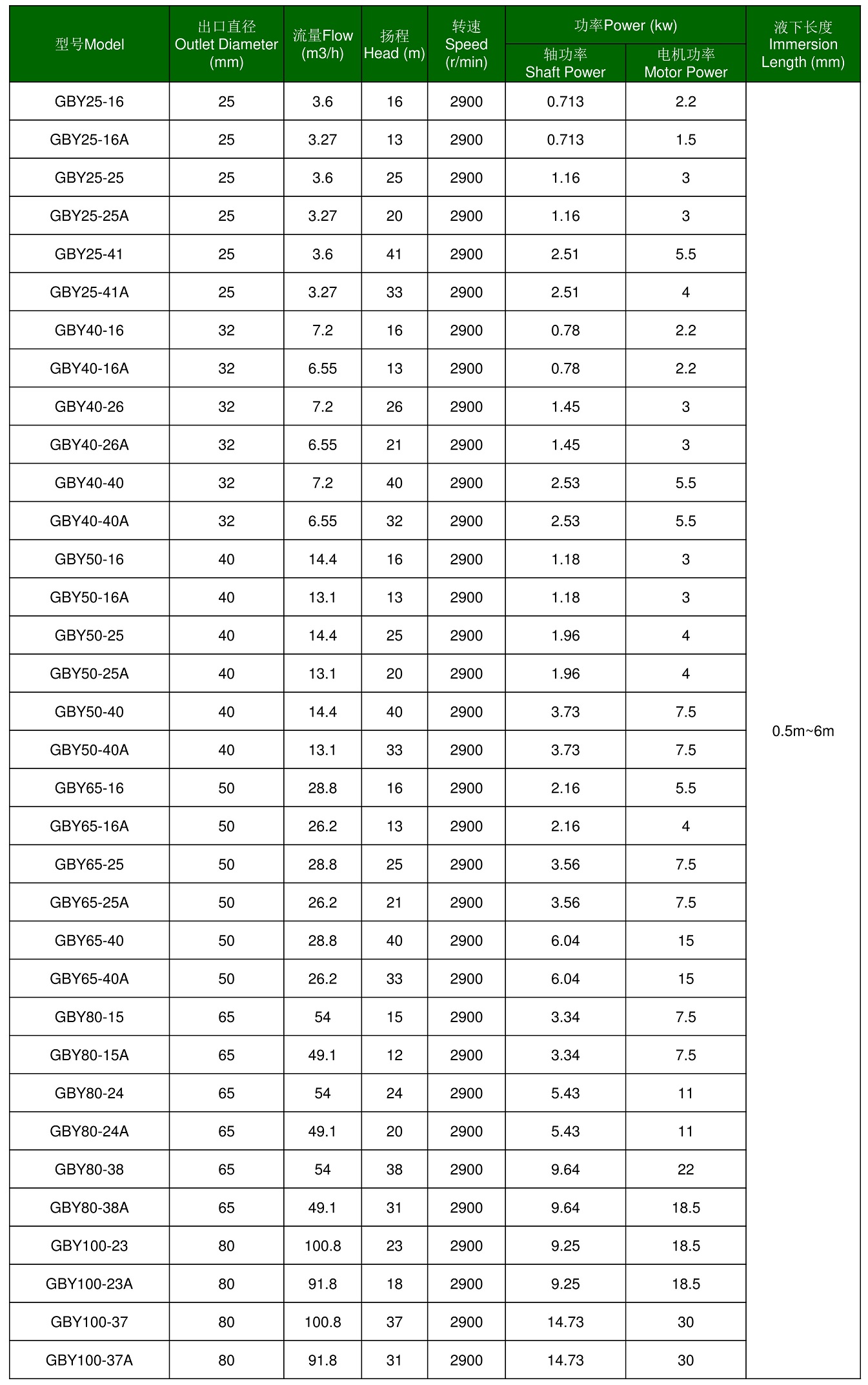

Technical Specification：
