XBC-SOW Diesel Multistage Centrifugal Pump

Description

XBC-SOW single-stage double-suction diesel fire pump is a fire pump set driven by diesel engine. The design and production of the set comply with gb6245-2006 standard "Performance Requirements and Test Methods of Fire Pump".

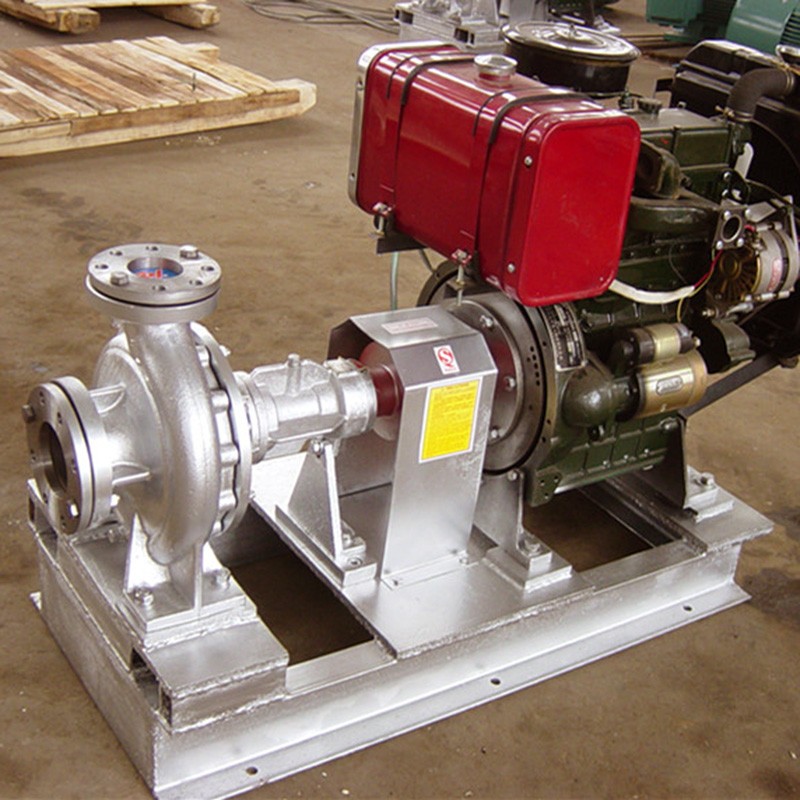

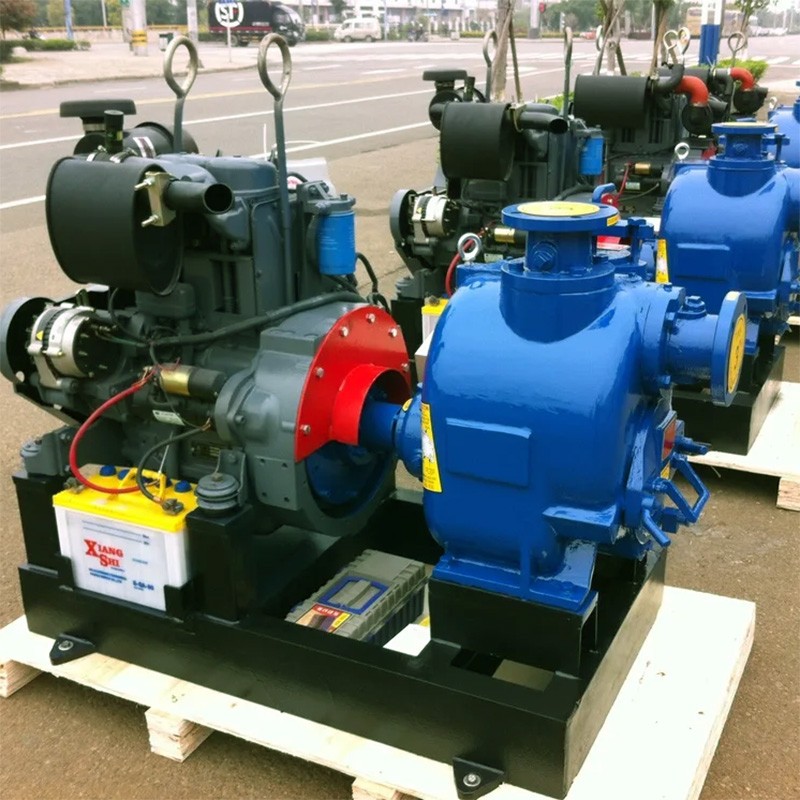

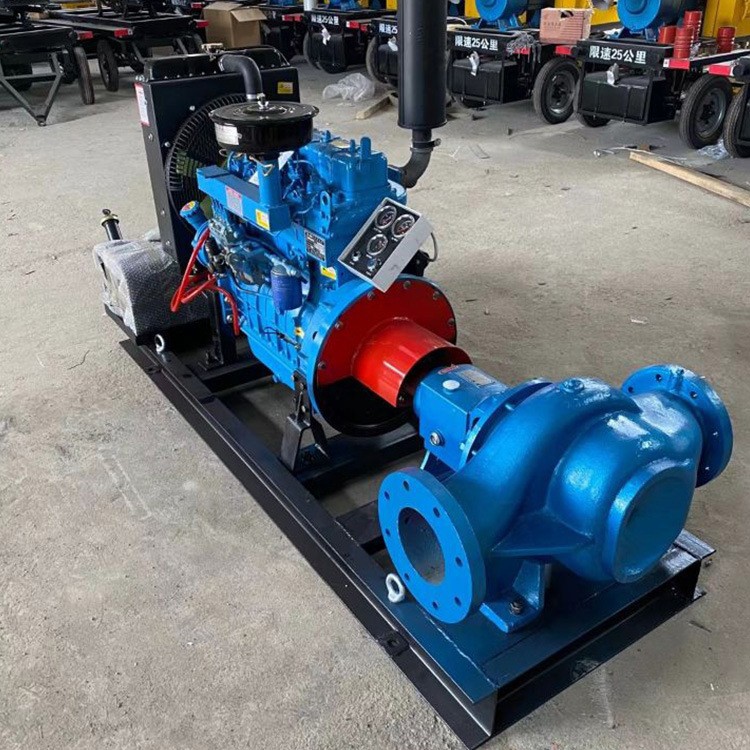

XBC-SOW single-stage double-suction diesel fire pump is installed on the same base with the diesel engine, the diesel engine directly drives the water pump to run, especially good start, strong overload capacity, compact structure, convenient maintenance, high degree of automation, reliable performance and wide range of pressure and flow of equipment.

Feature

★ Stator and rotor contact spiral sealing line will separate the income chamber and discharge chamber, so that the pump has the function of valve partition;
★ Can realize liquid, gas, solid multiphase mixed transport;
★ Pump fluid flow volume does not change, no ripple agitation and pulse;
★ The volumetric cavity formed by the elastic stator can effectively reduce the wear of conveying medium containing solid particles;
★ The viscosity of the input medium can reach 50000Mpa·s and the solid content can reach 50%;
★Flow and speed proportional, with the help of the governor can realize the amount of automatic adjustment ;

Product configuration:

1, water pump: SOW series multi-stage Centrifugal pump.

2, diesel engine: single cylinder, double cylinder, four cylinder, six-cylinder diesel engine, the speed: 1500 r/min1800r/min2400 / min, etc.

3, other accessories: filter system, silencer system, cooling system, fuel tank, public channel steel base, heat sink, battery, charger.

4, control cabinet: single board machine, PLC programmer, sensor, automatic control cabinet.

TechStandard scope of supply:

• Diesel pump unit: diesel engine, water pump, coupling, cooling fan, cooling water tank, steel structure base (including the bottom tank 80-120L), battery and connecting wire, exhaust muffler, control screen.
• The standard design is a compound type of pump group, oil tank at the bottom of the machine, control panel and battery group.
• According to customer requirements, it can be designed into pump group, oil tank at the bottom of the machine, control screen, battery group, outdoor rain box compound outdoor type.

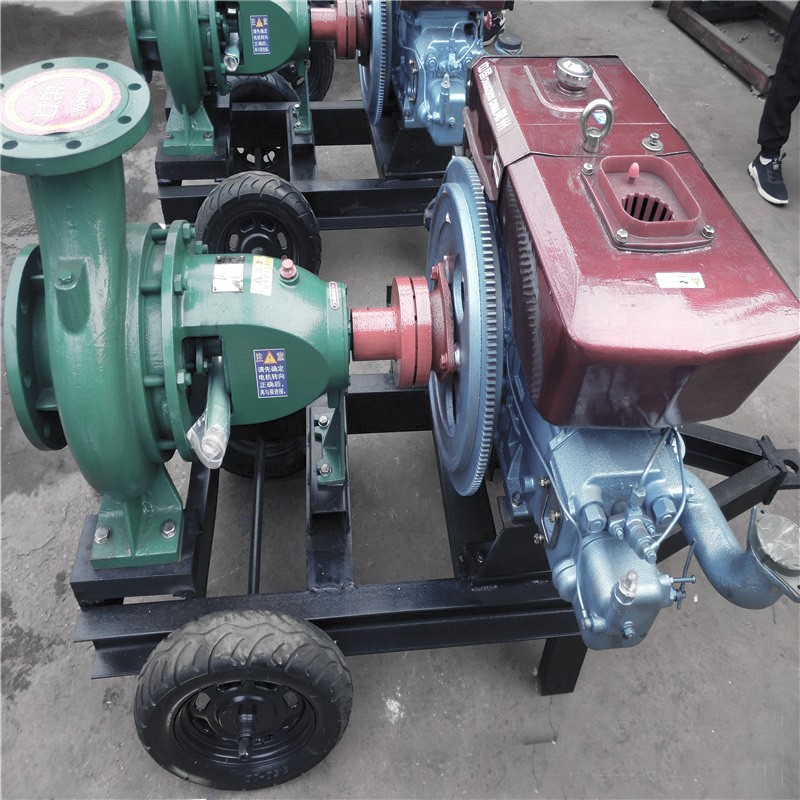

• According to customer requirements can be designed into trailer (four or two wheels) mobile type.

Fire protection - hydrant system, sprinkler system, spray cooling system, foam system, water cannon system

Industry - water supply system, cooling circulation system

Agriculture - Water supply, drainage and irrigation systems are particularly suitable for use in areas without electricity

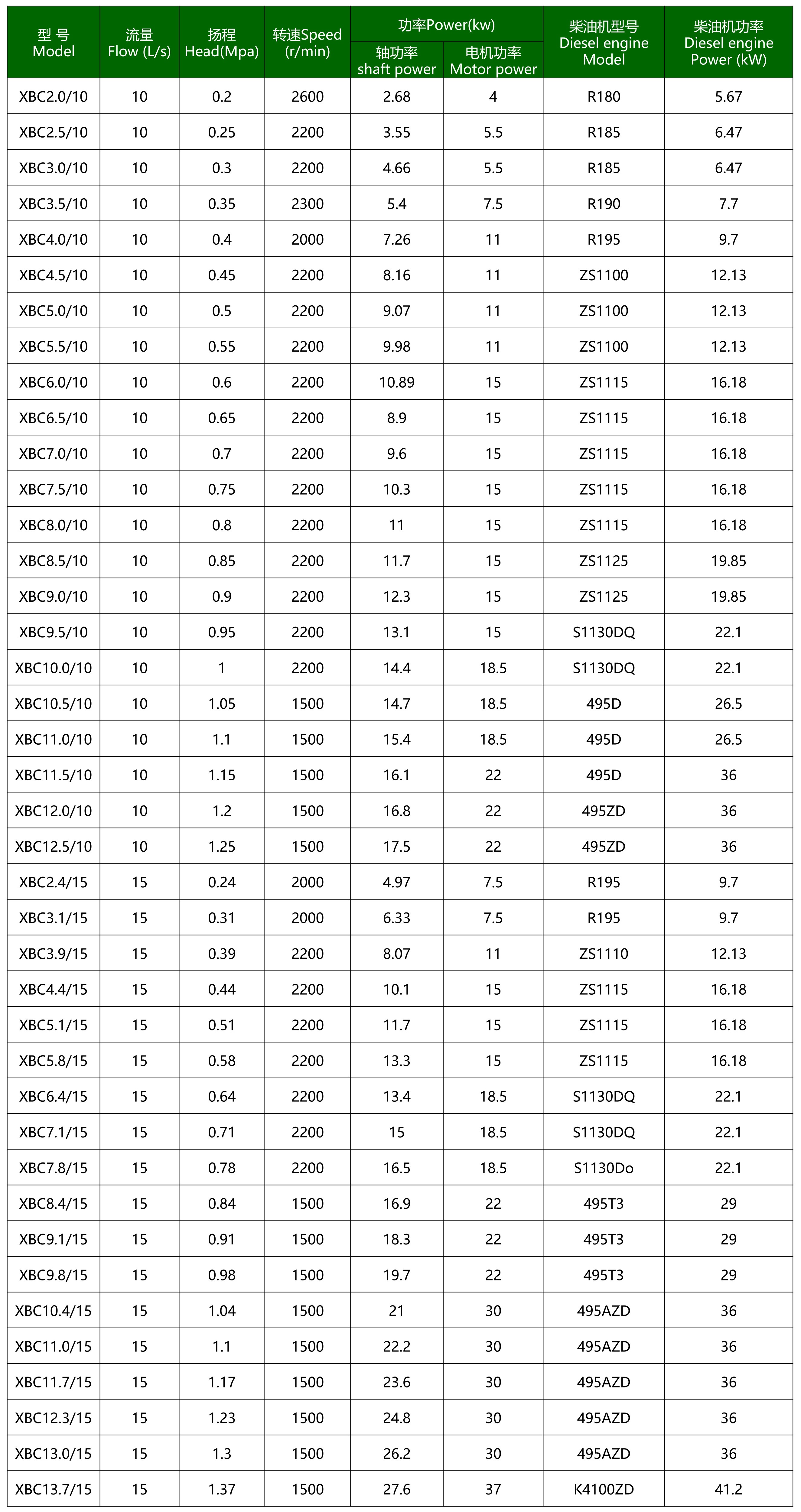

Technical Specification
