Description
Introduction

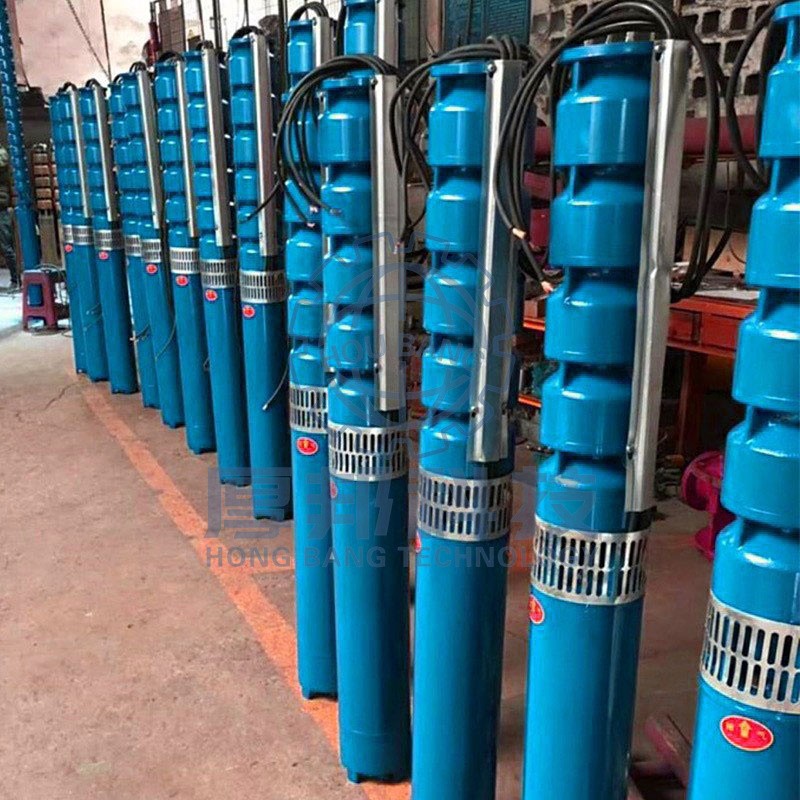

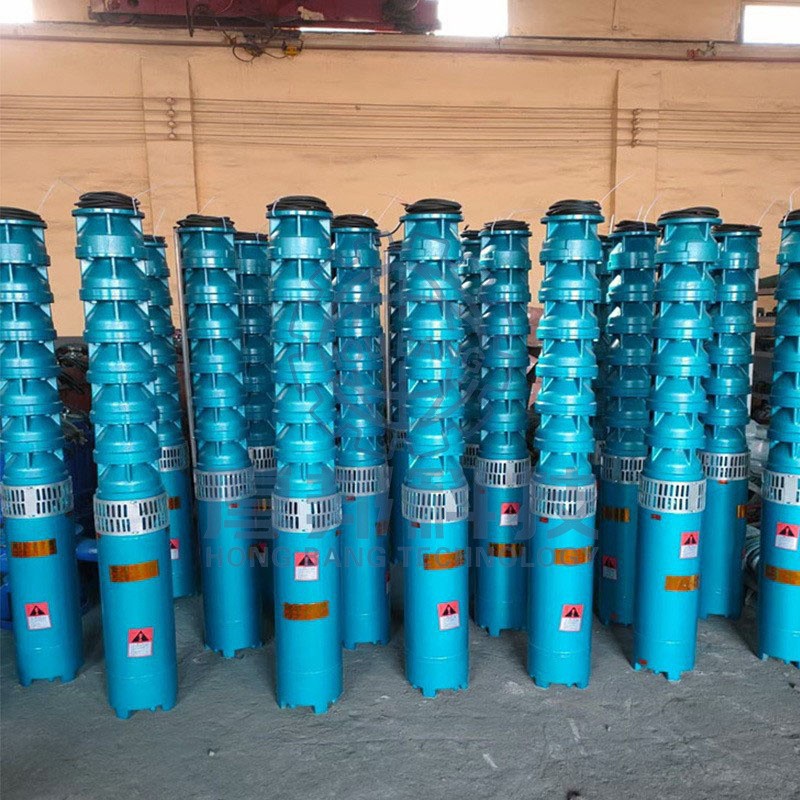

QJ series submersible pump for wells is a water pumping device that directly connects the motor and the pump and operates underwater. It is suitable for extracting groundwater from deep wells, and can also be used in water pumping projects such as rivers, reservoirs, and canals. It is mainly used for irrigation in farmlands and for water supply for people and livestock in high-altitude mountainous areas. It can also be used for water supply in cities, factories, railways, mines, and construction sites.
Performance
Flow: 9m3/h-2500m3/h
Lift： 12-600m
Caliber： 175-800mm
Power： 7.5-410KW
Temperate： ≤120℃
Material: HT200; ZG230-450; SS304,SS316,2205
Cnditions of usage
1. Voltage: 3*380V/50Hz.
2. The water inlet of the pump must be below the dynamic water < 1 m, but the submersible depth must > 70 m below the static water level. The bottom of the motor must be at least 1 meter above the water depth at the bottom of the well.
3. The water temperature < 20°C.
4. Water quality requirements:
(1) The sand content in the water is no more than 0.01% (by weight);
(2) PH value: 6.5 to 8.5;
(3) The chloride ion content is no more than 400mg/l.

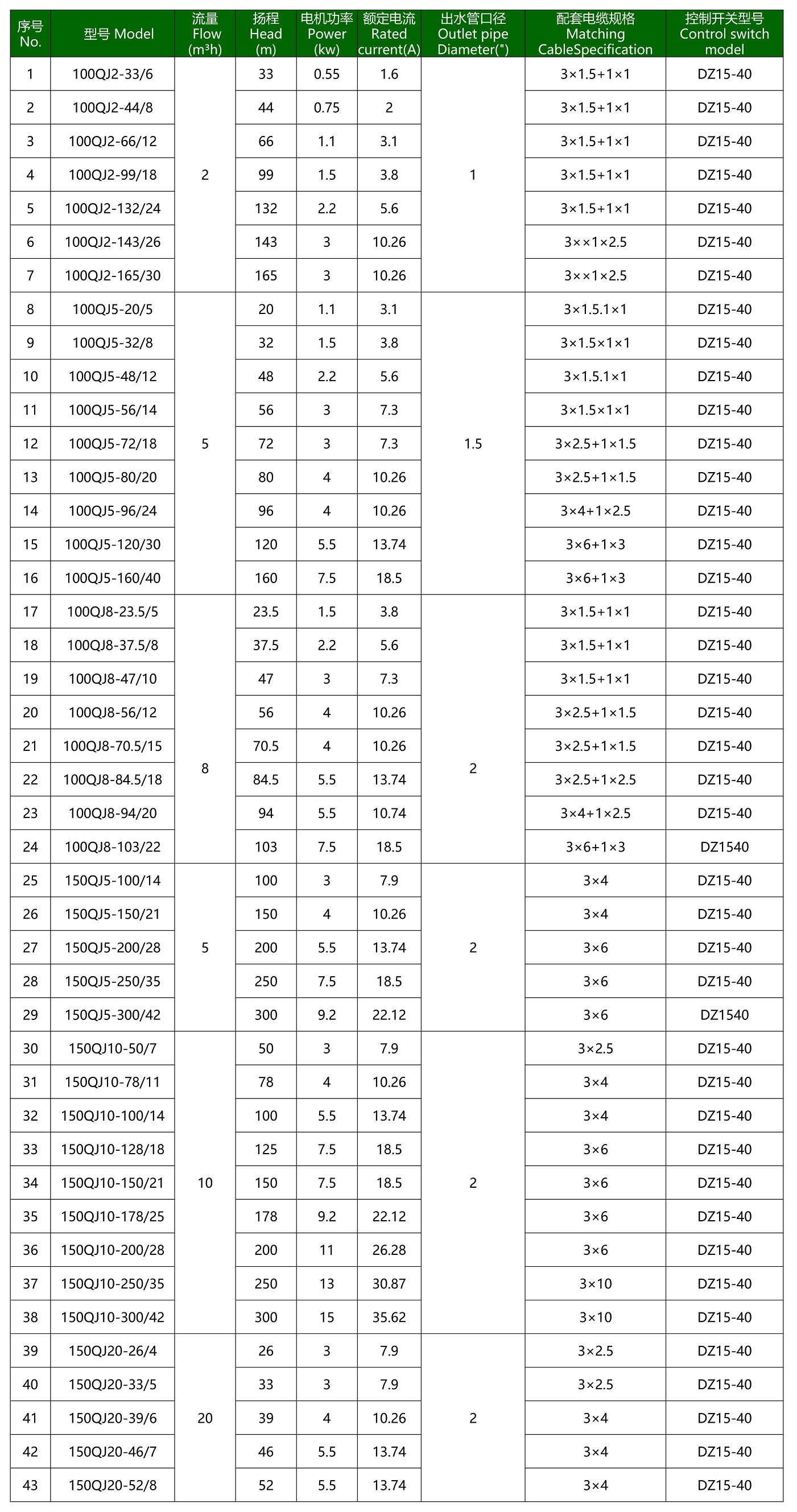

Technical Specification
