Description
Introduction

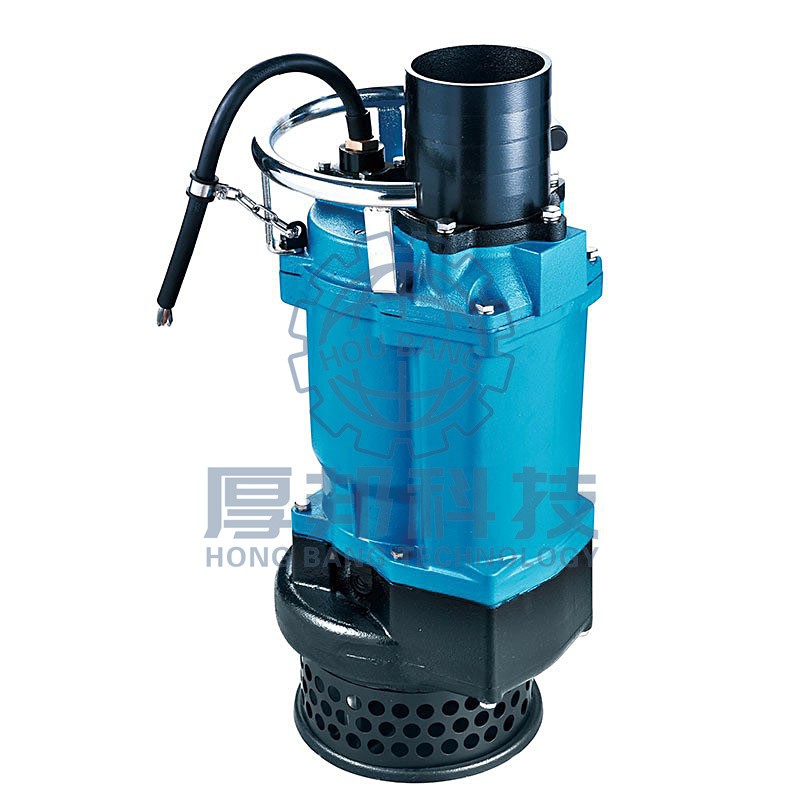

Submersible slurry pump with 4-pole motor for increased lifetime and greater convenience.High chrome alloy impeller combined with agitator is designed for pumping heavy slurry.Silm design with a top discharge enabling installation in smaller casing.For bentonite mixed water in fundation works or muddy water in civil engineor works.
Properties
Drive :Electric
Flow rate: 390m3/h
Head：39m
Motor power: 4 kw - 37kw
Speed: 1450r/min
Outlet diameter: 80mm - 200mm
Pupm Body Material:Cast iron
Medium temperature: Up to 40℃
- Civil engineering
- Mines, quarries, coal ore & slurries
- Sewage treatment plants
- General pumping purposes
- Pumping fluid: sludge, liquid-containing mud and bentonite

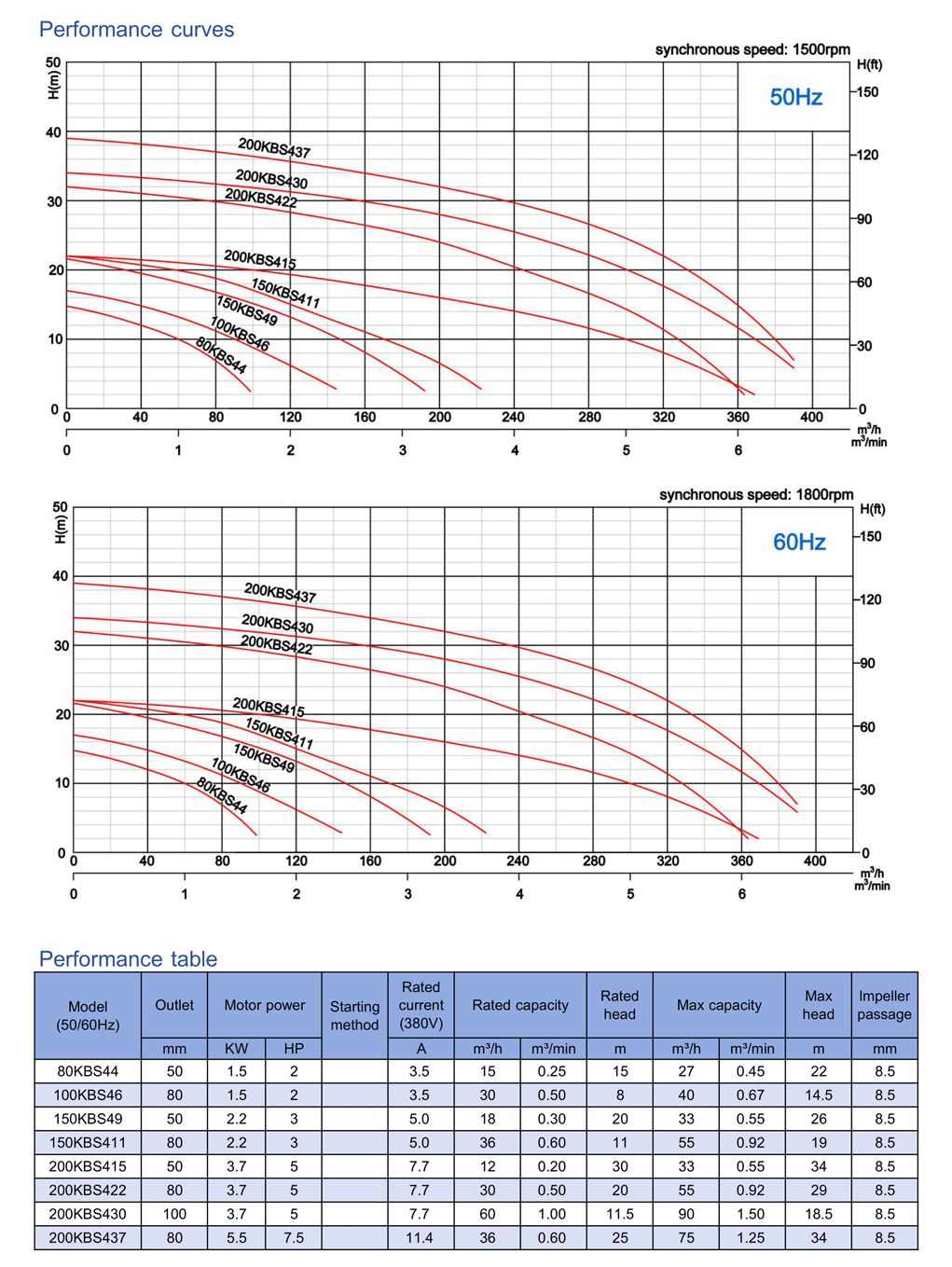

Technical Specification：
