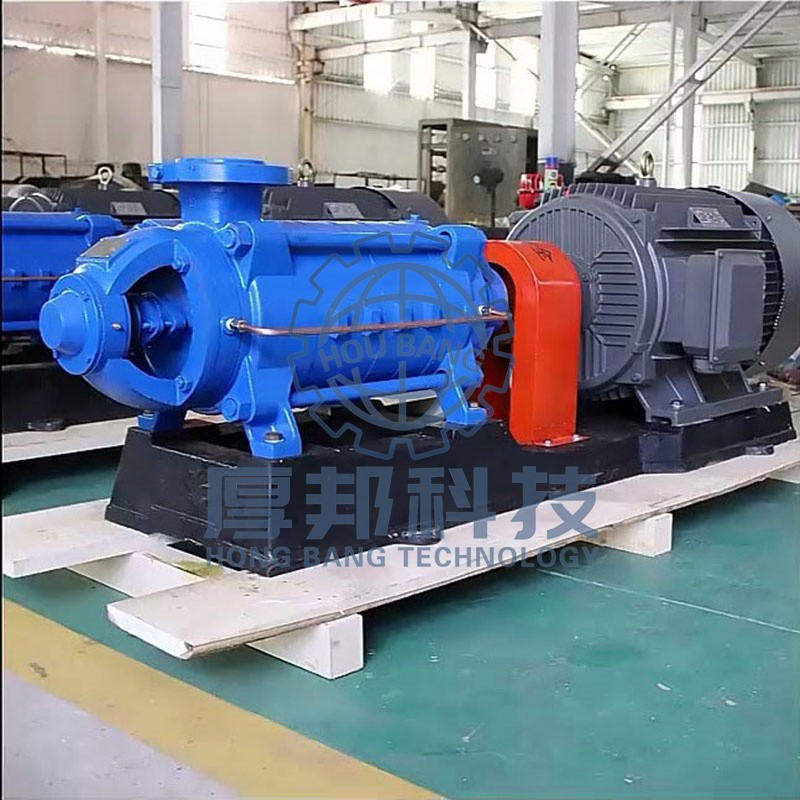

DG Series Boiler Feed Pump

Payment Type:T/T,Paypal,Western Union

Incoterm:FOB,EXW,

Min. Order: piece/pieces

Delivery Time: 7 Days

Description

Introduction

DG type multi-stage boiler feed pump is a horizontal multi-stage single-suction segmented centrifugal pump. It is suitable for conveying clear water with a temperature not exceeding 150°C, or liquids with physical and chemical properties similar to water and without corrosiveness. It is widely used in boiler feed water for power plants, metallurgy, heating and other industries.

The directions of both the inlet and the outlet are vertically upward.

Performance

Flow: 60-500 m3/h

Head: 750-2000 m

Power: 75-1250 kw

Speed: 2950 r/min

Liquid temperature:<160℃

Voltage: 380V-6KV or 10KV/IMB3

Material: HT200, HT250, QT600, ZG, 304, 316, 316L, 317L, 904L, CD4-MCu

Medium: Boiler feed water, clean water or other liquids with physical and chemical properties similar to water
