Description
Introduction
GCN single screw pump is an enclosed screw pump with inner gearing, a kind of rotor positive-displacement pump.
As this kind of pump is characterized by being adaptable for the medium, stable flow, good suction performance and small pressure pulsation, it can transfer very viscous media or those containing hard suspended or solid grains or fiber apart from various flowing media. Besides, it boasts good adjusting performance, wide range and high efficiency. Therefore, it is widely applied in various industries like environmental protection, shipping,petroleum, pharmacy, household chemical, food, brewery, construction, mining, chemistry, printing, paper making, power plants and boilers.

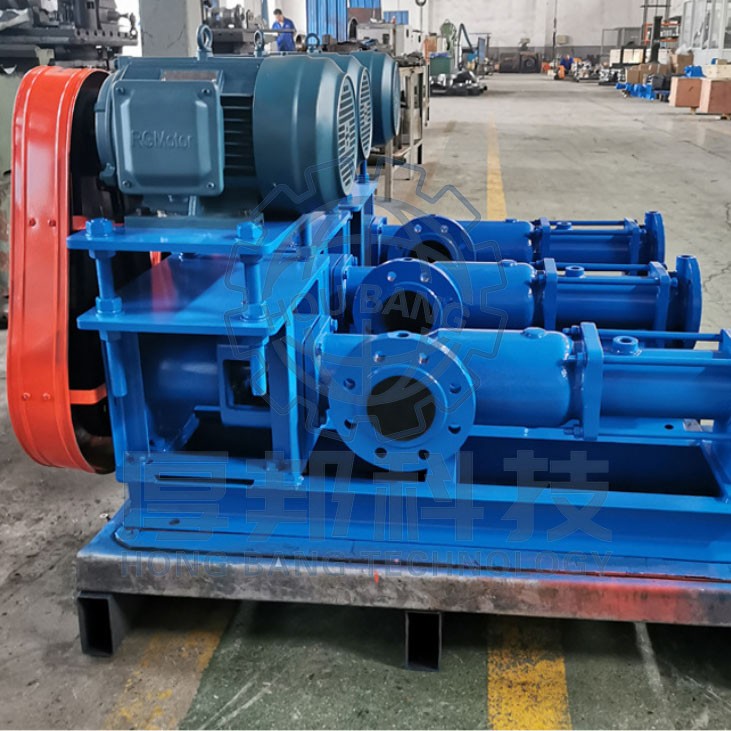

GCN Marine Backpack Single Screw Pump
Operation Parameter
Caliber:DN25~DN250mm
Capacity:0.8~150 m3/h
Pressure:≤1.2Mpa
Rotate speed:960r/min;720r/min;630r/min;500r/min;400r/min
Work temperature:≤100°C
Viscosity:≤10000pas
Discharge ablility:Particle size≤1.5~20mm
Length of fibre≤25~150mm
Pressure grade:1.6Mpa
Motor power:0.75~75kW
Feature
(1)Medium is delivered in axial direction continuously without agitation and pulsation.
(2)Small vibration and low noise
(3)High pressure and high efficiency
(4)Simple structure, easy disassembly and assembly
(5)Small volume and lighe weight
(6)Slight wear and long life of the pump
Structure: The pumps are sealed generally by mechanical seal and driven by the motor through the claw coupling.
Transmission Medium
1, lubricating liquid, such as machinery oil, spindle oil, transformer oil, heavy oil and residual oil, etc.;
2, low lubricating liquid, such as wax oil, light diesel oil and heavy diesel oil, high temperature asphalt, coal tar, etc
3, viscous liquid, such as lubricating grease, viscose, asphalt, etc.

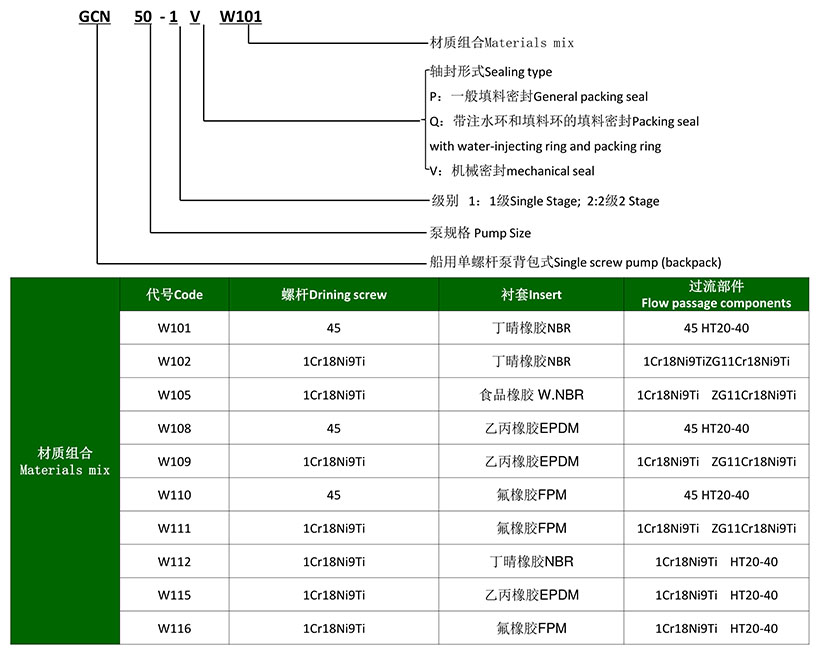

Ordering Code

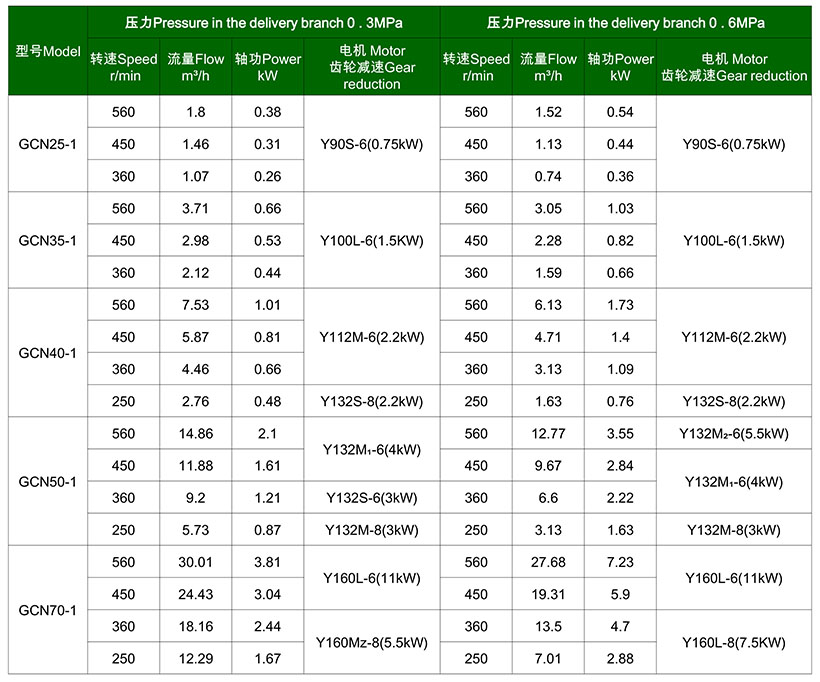

Technical Specification
