Description
Introduction
LSB type high-temperature sulfuric acid submersible pump is mainly used for the transportation of high-temperature concentrated sulfuric acid medium and is compatible with all other application fields of submersible pumps. Its performance and size comply with the DIN24256 / ISO2858 standards. It has a high degree of integration, is convenient for disassembly, maintenance and repair. The LSB submersible pump widely incorporates the structural design experience of domestic and foreign sulfuric acid pumps, increases the length of the suction pipe, improves the rigidity of the pump group, ensures smooth and reliable operation, and is a vertical single-stage single-suction cantilever submersible pump. The research and selection of excellent hydraulic models for the pump ensure stable operation performance and high efficiency and energy saving. The use of the most advanced corrosion-resistant materials in China, the flow components of the LSB sulfuric acid submersible pump are made of IMRC-1 (lewmet-55) alloy and 20 alloy, and the other parts are made of special corrosion-resistant cast iron, further extending the service life of the pump. It is a reliable product for a wide range of customers. We warmly welcome inquiries and orders.
Outlet diameter: 25mm - 80mm
Flow rate: 3.6m³/h - 100.8m³/h
Head: 13m - 120m
Suction power: 0.713kw - 14.73kw
Speed: 2900r/min,1450r/min
Submerged length: 500mm - 2500mm
Motor power: 1.5kw - 30kw
Applicable media: Drinking water, seawater, corrosive media, oil and gas, gas transportation
Voltage: 380v
Material: 20# alloy, LSB alloy,
Medium temperature: 20℃~120℃
Pressure：1.6Mpa
Application:
- Suitable for sulfur and phosphorus chemical industry, coal chemical industry, petrochemical industry, metallurgy, synthetic
- fiber, medicine and other industries, transferring various acidic, alkaline and neutral media without solid particles.
- It is used in oil refinery, petrochemical industry, coal chemical industry, power plant, environmental protection engineering,
- sewage treatment, cement plant and other industries and fields. The self-flushing structure is suitable for transferring various
- clean, particle-free, neutral or corrosive media; the external flushing structure is suitable for transferring various slurry,
- particle-containing and sewage media.

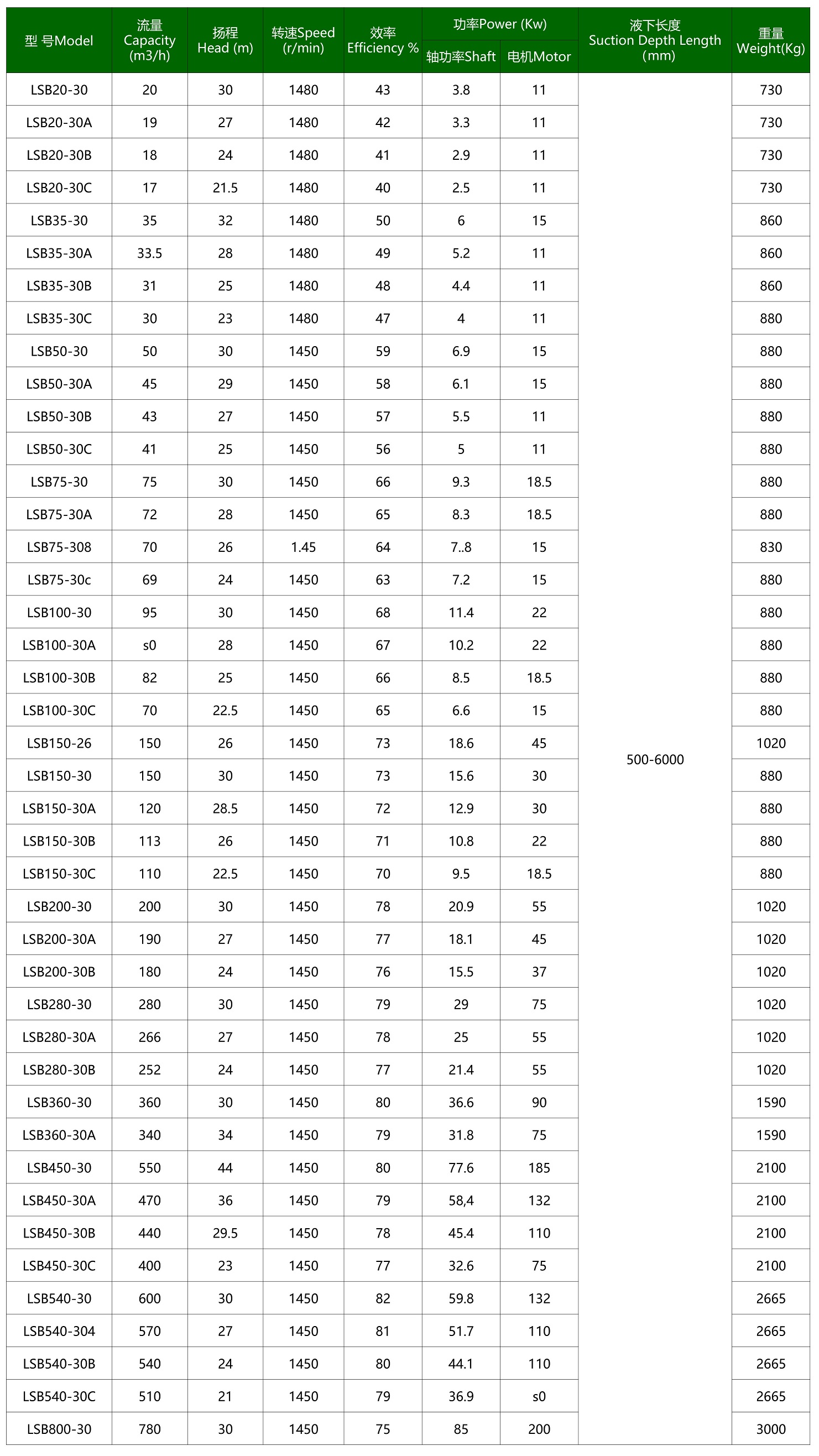

Technical Specification：
