Description
Introduction

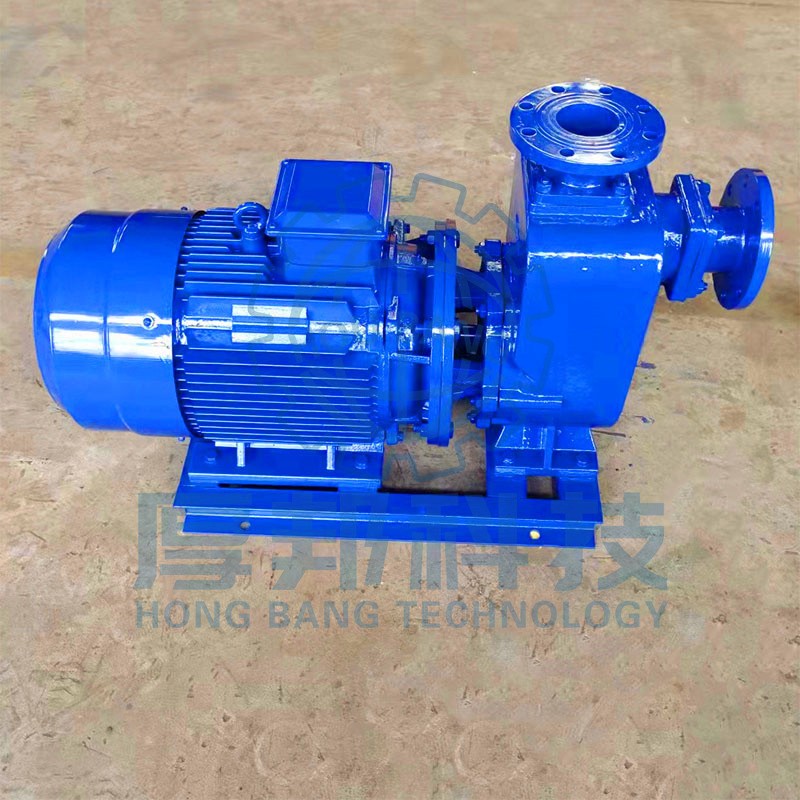

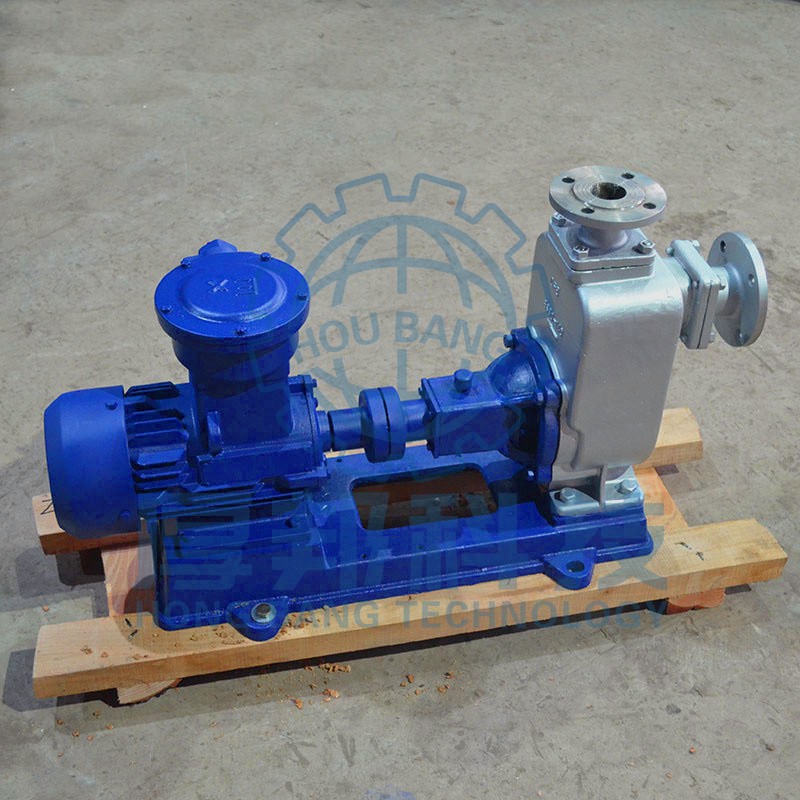

ZW series non-clog self priming sewage pump ,also named solid-liquid pump or trash pump, is featured by distinctive hydraulic design, with impeller restricted within a single impeller bowl connected by pumping chamber. When impeller rotates, the liquid inside pump produces violent axial vortex, thus making inlet vacuumized and outlet provided with head. In this way foreign substances can be discharged out of pumping chamber. That is to say ,its flow channel is fully cleared, making it's discharging capability unparalleled compared with other self-priming pumps.
Performance Range
Flow rate: 5-800m3/h;
Head: 12-60m;
Speed: 1450-2900r/min;
Diameter: Φ25-Φ300;
Ambient temperature: ≤50℃;
Medium temperature: ≤80℃;
Self-priming height: 4.5-6.0m

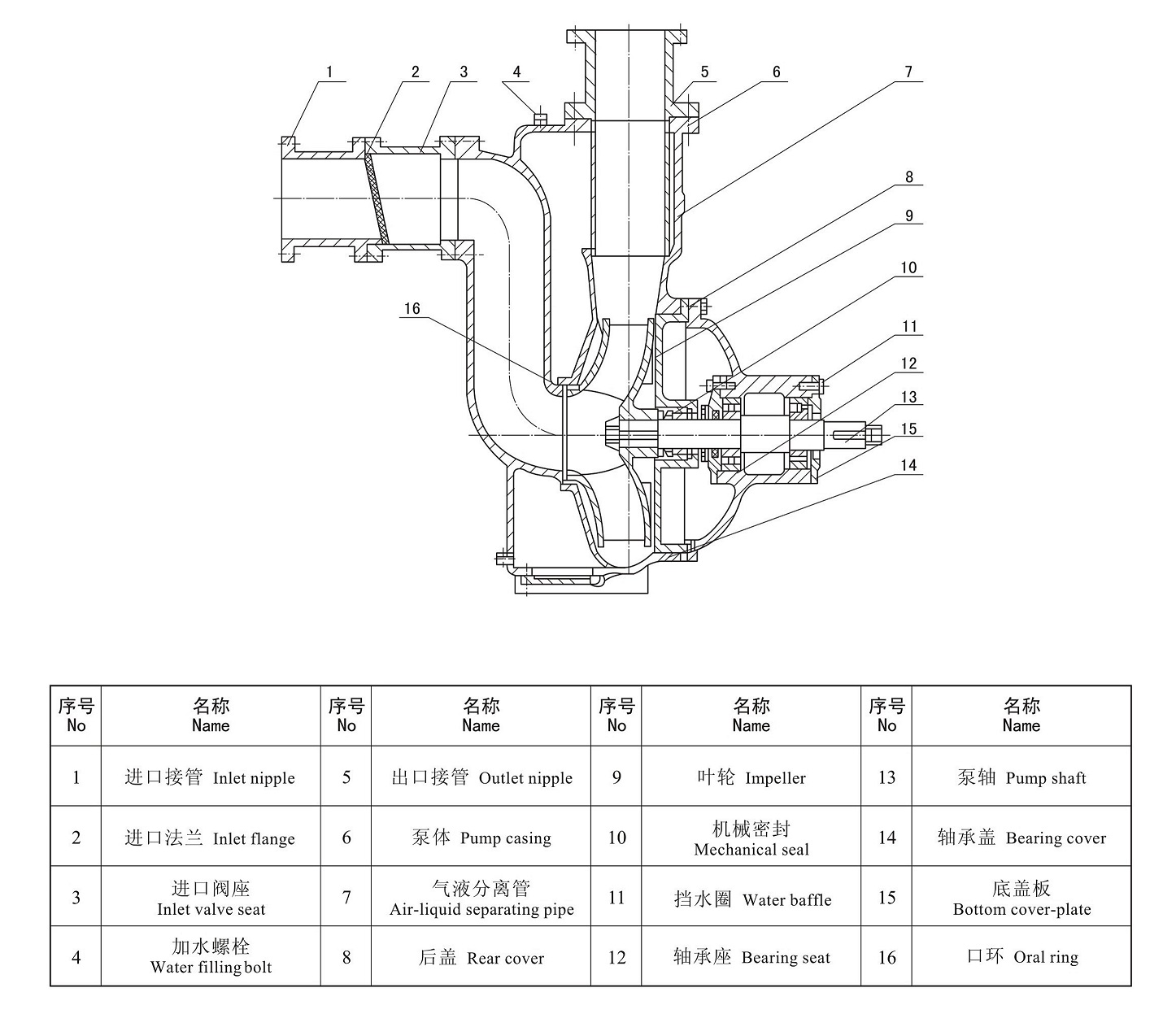

Structural Drawing
Application
Environmental protection: municipal sewage discharge, sewage treatment;
Industry: papermaking, textile, dyes;
Agriculture: pond and pond farming, etc.

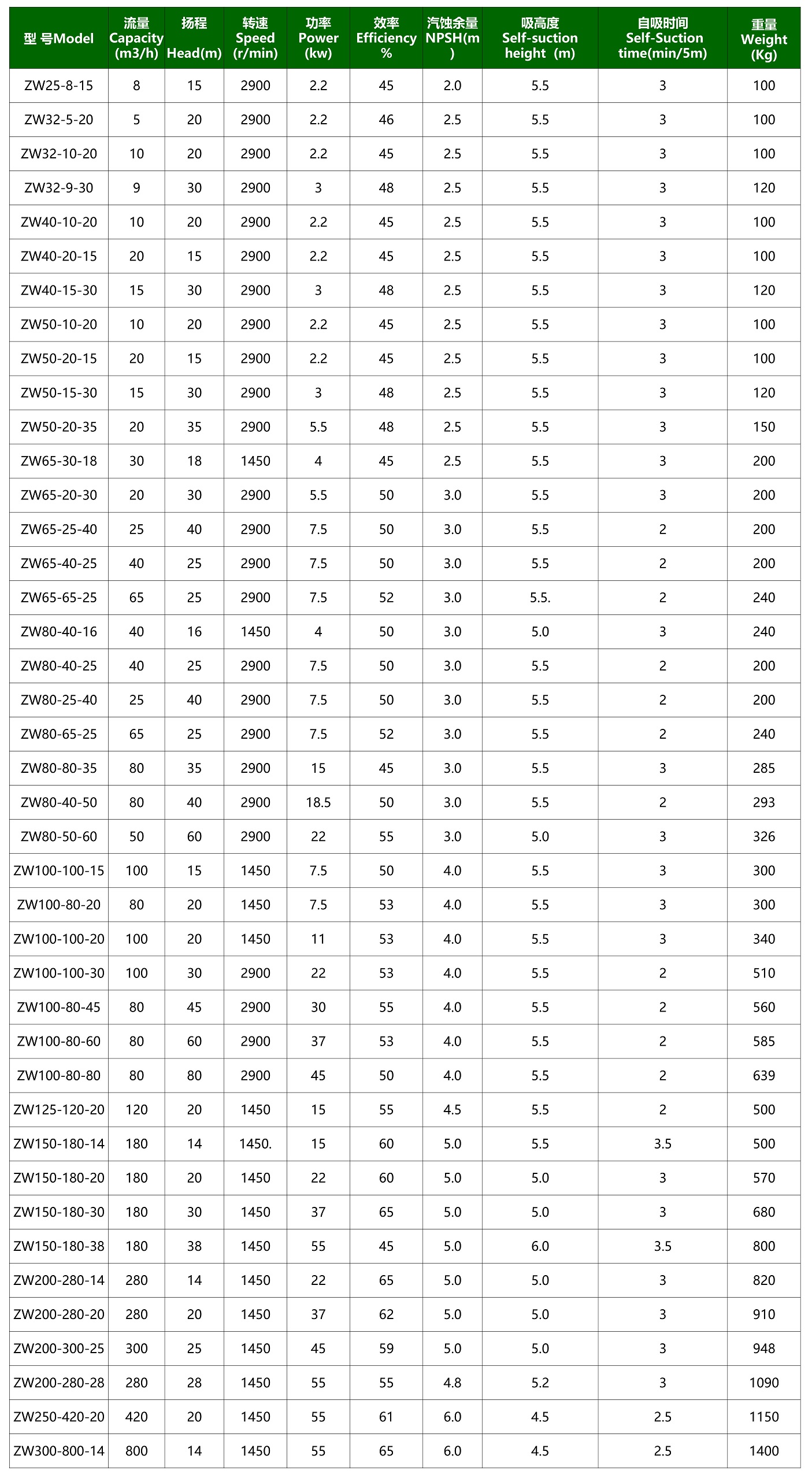

Technical Specification
