Description
Diesel engine Diesel engine pump unit is a new structure product developed on the basis of repeated research of similar technology. The diesel engine sewage pump set of self-priming and non-clogging sewage in one, using diesel engine driven axial reflux external mixing, and through the unique design of the pump body, impeller passage, the use of no need to install the bottom valve and irrigation water. Pump unit can absorb and discharge liquid containing large particles of solid and long fiber impurities, can be widely used in municipal sewage and flood control engineering, agricultural irrigation, etc.
Feature
★ Stator and rotor contact spiral sealing line will separate the income chamber and discharge chamber, so that the pump has the function of valve partition;
★ Can realize liquid, gas, solid multiphase mixed transport;
★ Pump fluid flow volume does not change, no ripple agitation and pulse;
★ The volumetric cavity formed by the elastic stator can effectively reduce the wear of conveying medium containing solid particles;
★ The viscosity of the input medium can reach 50000Mpa·s and the solid content can reach 50%;
★Flow and speed proportional, with the help of the governor can realize the amount of automatic adjustment ;
Product configuration:
1, water pump: TSWA series multi-stage.
2, diesel engine: single cylinder, double cylinder, four cylinder, six-cylinder diesel engine, the speed: 1500 r/min1800r/min2400 / min, etc.
3, other accessories: filter system, silencer system, cooling system, fuel tank, public channel steel base, heat sink, battery, charger.
4, control cabinet: single board machine, PLC programmer, sensor, automatic control cabinet.
Standard scope of supply:
- Diesel pump unit: diesel engine, water pump, coupling, cooling fan, cooling water tank, steel structure base (including the bottom tank 80-120L), battery and connecting wire, exhaust muffler, control screen.
- The standard design is a compound type of pump group, oil tank at the bottom of the machine, control panel and battery group.
- According to customer requirements, it can be designed into pump group, oil tank at the bottom of the machine, control screen, battery group, outdoor rain box compound outdoor type.
- According to customer requirements can be designed into trailer (four or two wheels) mobile type.

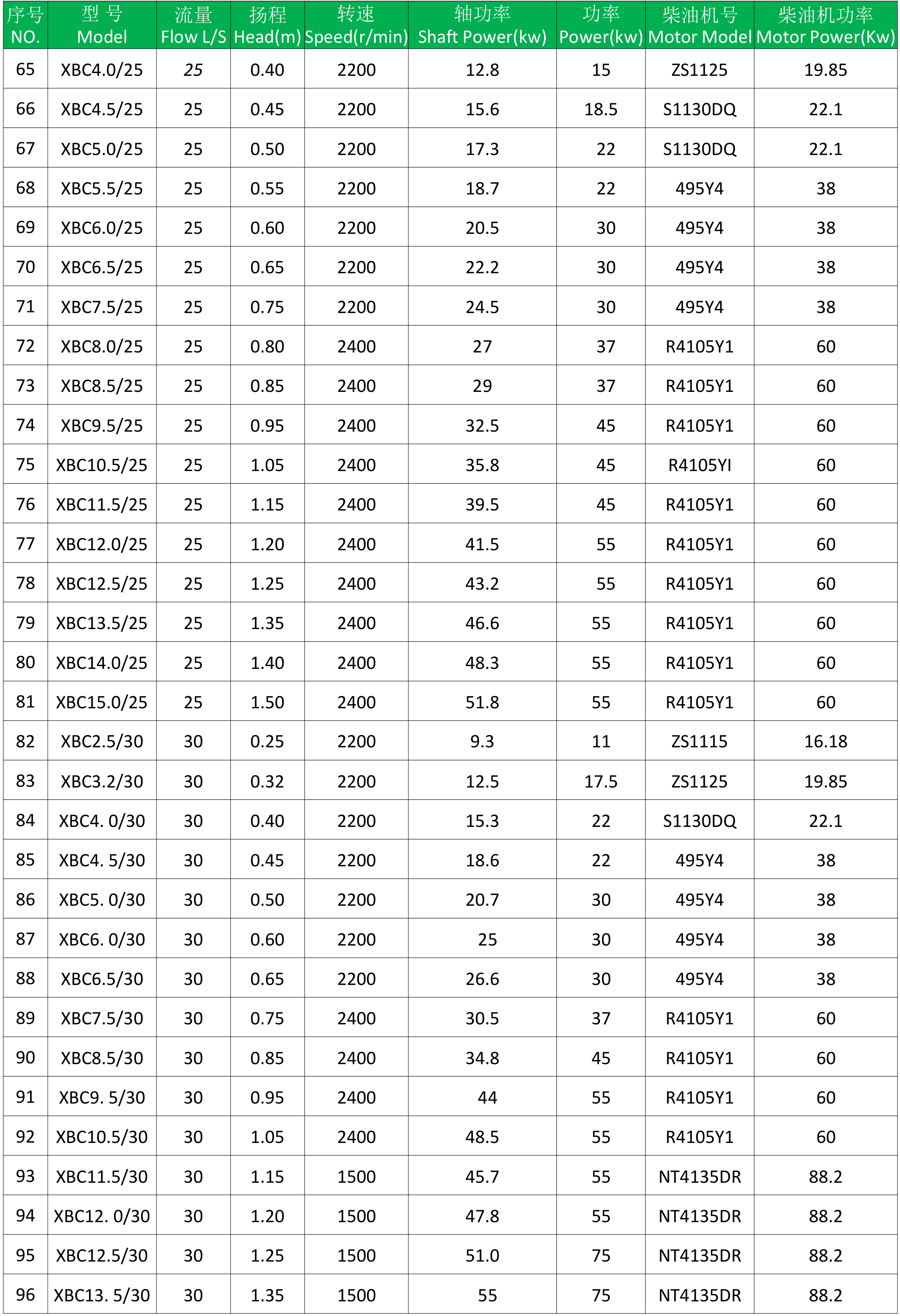

Technical Specification
