Description
Introduction
DL / CDLF is a versatile product that can convey various medium from tap water to industrial liquid, adapted to different temperatures, flow and pressure ranges, CDL suitable for non-corrosive liquids, CDLF suitable for mildly corrosive liquids.
Maximum flow: 0.4 ~ 110m³/h
Head: 4 ~ 250m
Power: 0.37 ~ 45KW
Temperature: -15 ~ + 120℃
Usage
◆ Water supply: Water filter and transport in Waterworks, bottled water, booster charge of high-rise building pressurization.
◆ Industrial boosting: process water system, cleaning system, high pressure washing system, fire fighting system.
◆ Industrial liquid conveying: cooling and air conditioning systems, boiler feed and condensate systems, machine matching, acid and alkali.
◆ Water treatment: Ultrafiltration systems, reverse osmosis systems, distillation systems, separators, swimming pool.
◆ Irrigation: irrigation, sprinkler irrigation, drip irrigation.
Operating Conditions
◆ Thin, clean, non-flammable and does not contain a liquid solid particles or fibers.
◆ The liquid temperature: room temperature type -15 ℃ to + 70 ℃ hot water 120 ℃ to + 70 ℃
◆ Ambient temperature: up to + 40 ℃
◆ Altitude: Up to 1000m
Pump
◆ CDL / CDLF for the installation of non-standard motor self-priming vertical multistage centrifugal pump, the motor shaft through the pump head and shaft is coupled directly to the coupling, rod bolts cylinder pressure, flow components on the pump head and out of the water section between the pump inlet and outlet of the pump bottom at the same straight line; this pump can be equipped with intelligent protection device needs to pump dry, phase, effective overload protection.
Motor
◆ The motor is fully enclosed, cold-type pole standard motor.
◆ Protection class: IP55
◆ Insulation class: F
◆ The standard voltage, 50Hz: 1x220-230 / 240V 3x200-220 / 346-380V 3x220-240 / 380-415V 3x380-415V.

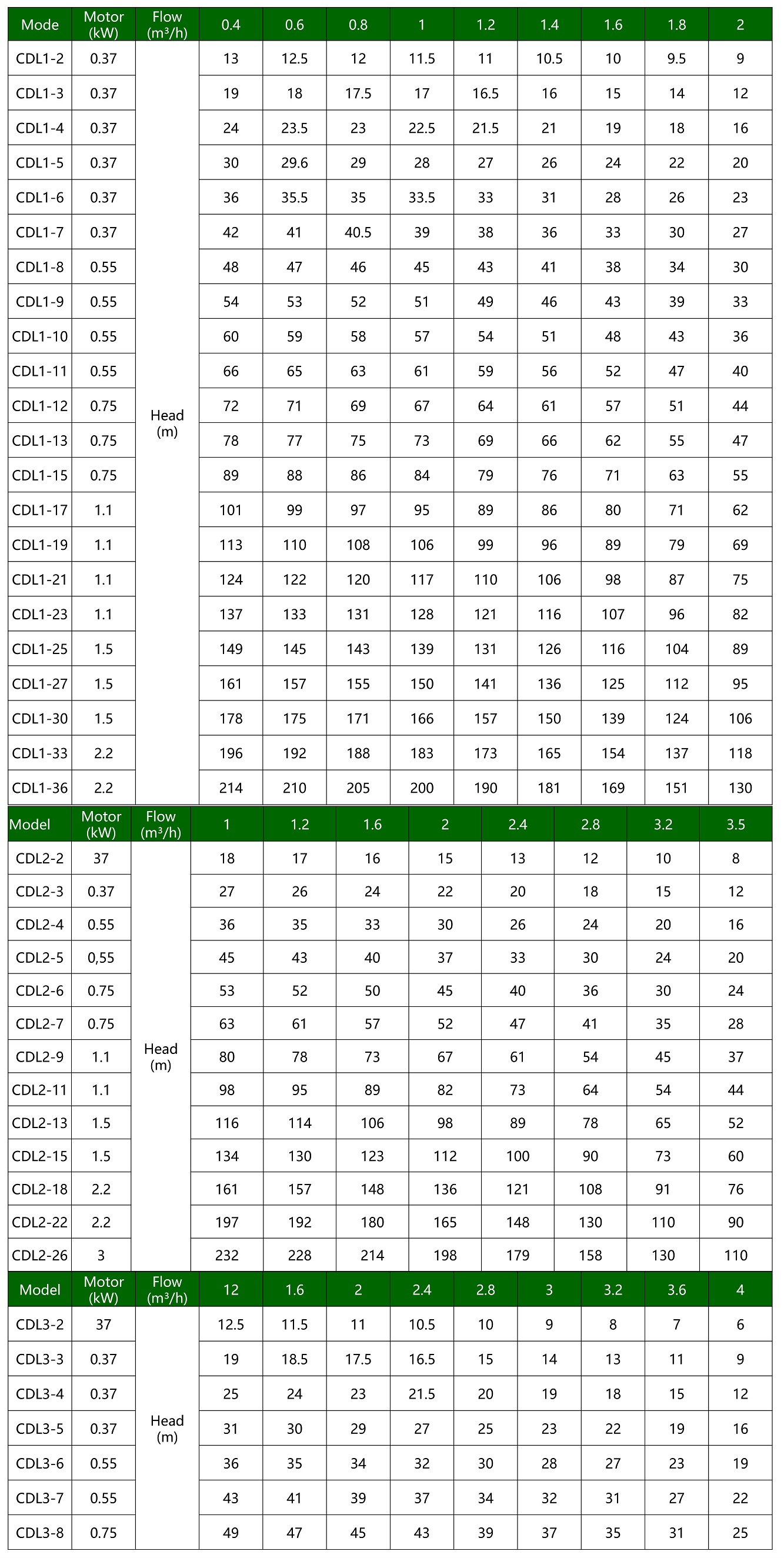

Technical Specification：
