Description
Introduction

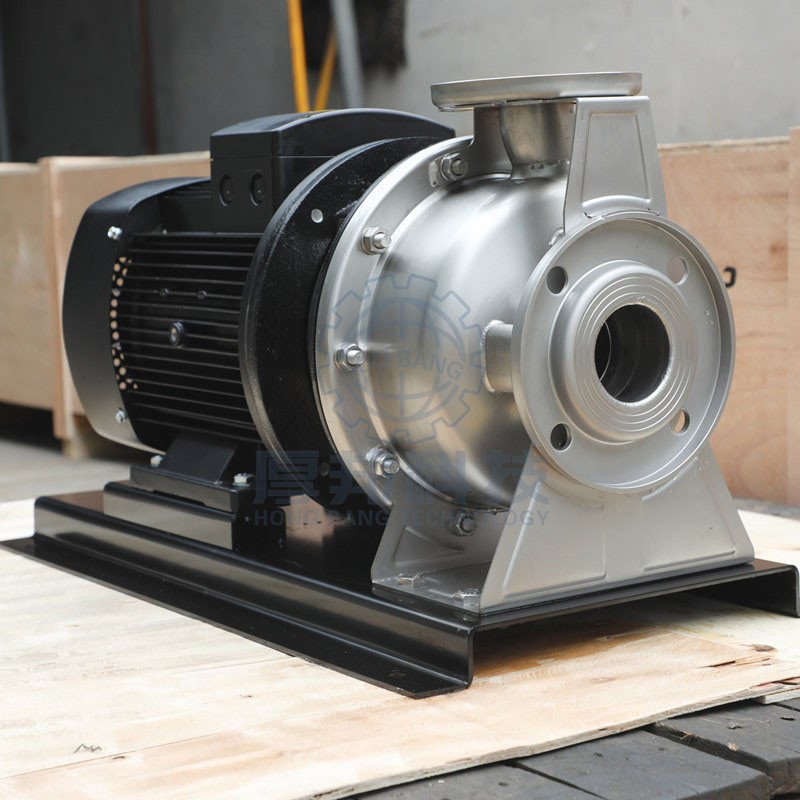

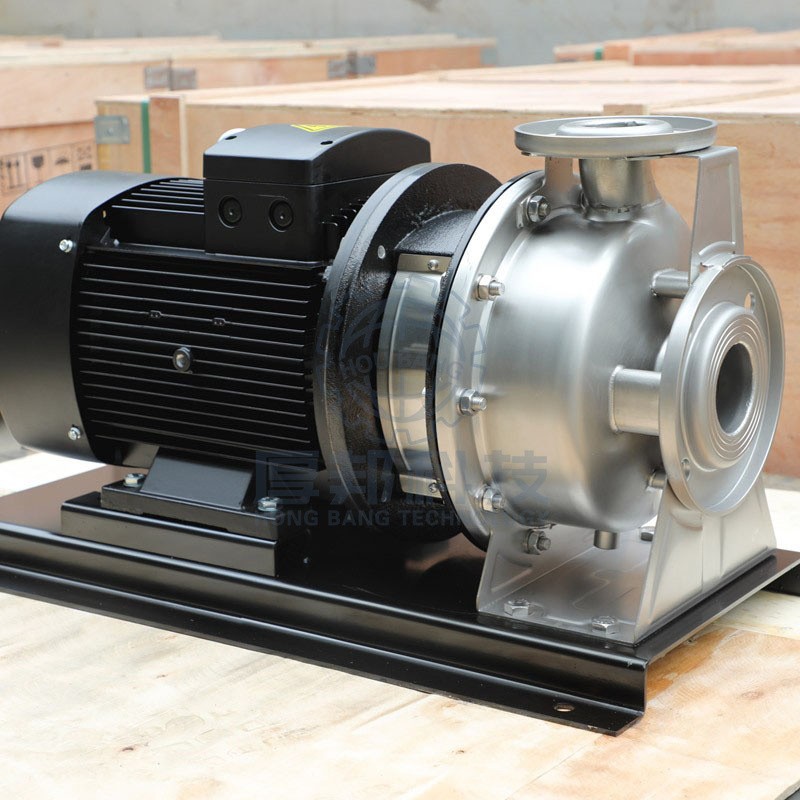

This pump is used for conveying stainless steel SUS304 or SUS316 does not produce obvious corrosion of clean medium preparation special IP55,F motor, mainly used in water supply system, pressure boiler water supply, high purity water purification system, fine chemical industry, washing, spraying.
Feature
- The supply is light and easy to install.
- Motor and pump body integrated design smooth operation.
- IP55 high level of protection against rain.
- Low noise motor, very low noise.
- The flow parts are made of stainless steel, the pump shell is made of hydraulic swelling process, and the vortex shell flow channel is designed for higher efficiency.
- Low noise standard motor with mechanical seal.
- The "back axle" design is easy to disassemble, and the motor and impeller parts can be removed without removing the pipe.
- GZA series with extended shaft national standard motor.
- Flange connection dimensions conform to DIN standard.
- Class F insulation, IP55 protection.
Application
Water supply system；
Pressure boiler water supply；
High purity water purification system；
Fine chemical industry；
Rinse and spray irrigation;
Conveying medium temperature
1. Mechanical seal with nitrile rubber/ceramic/graphite material: -20 ℃ ~+80 ℃ /
2, mechanical seal with fluorine rubber/ceramic/graphite material: -20 ℃ ~+110 ℃
3, mechanical seal with ethylene propylene rubber/ceramic/graphite material: -20 ℃ ~+100

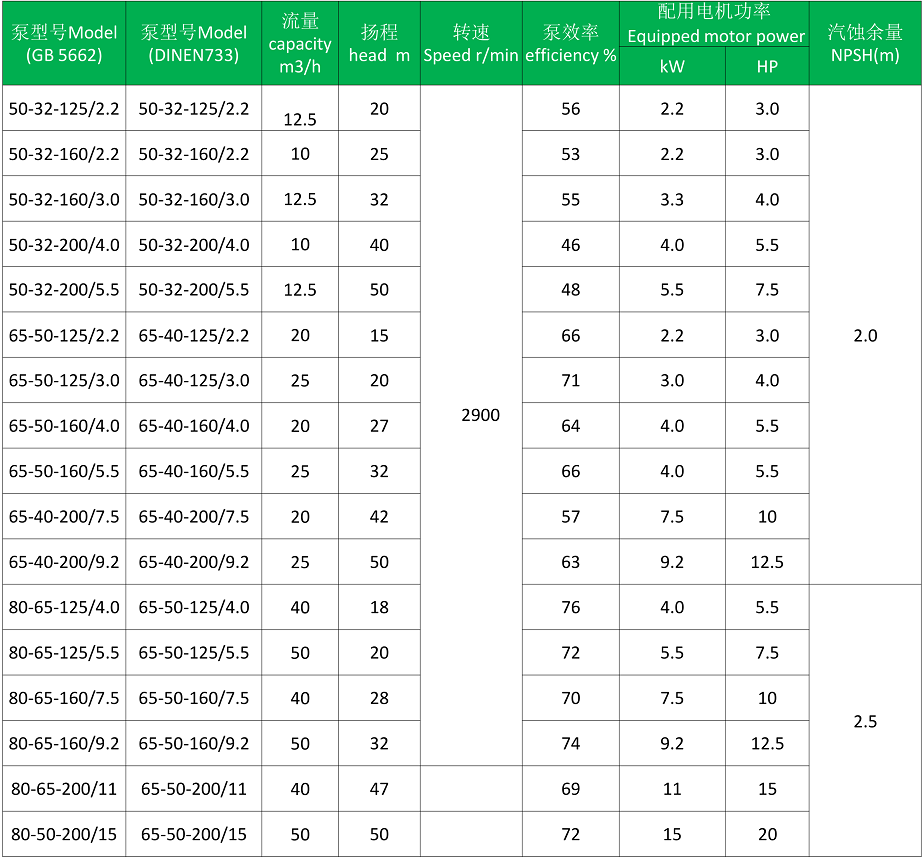

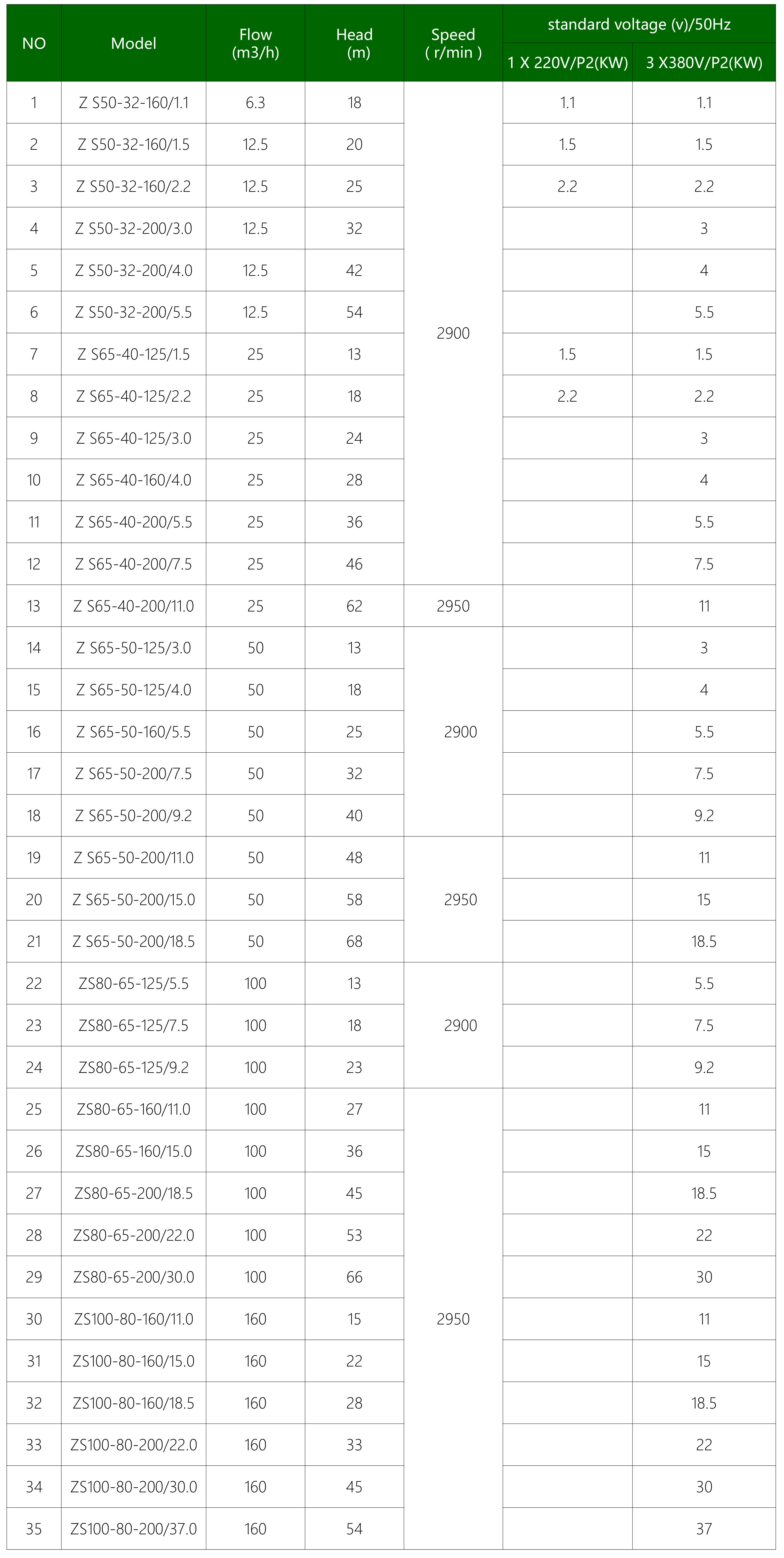

Technical Specification：
