Description
Introduction

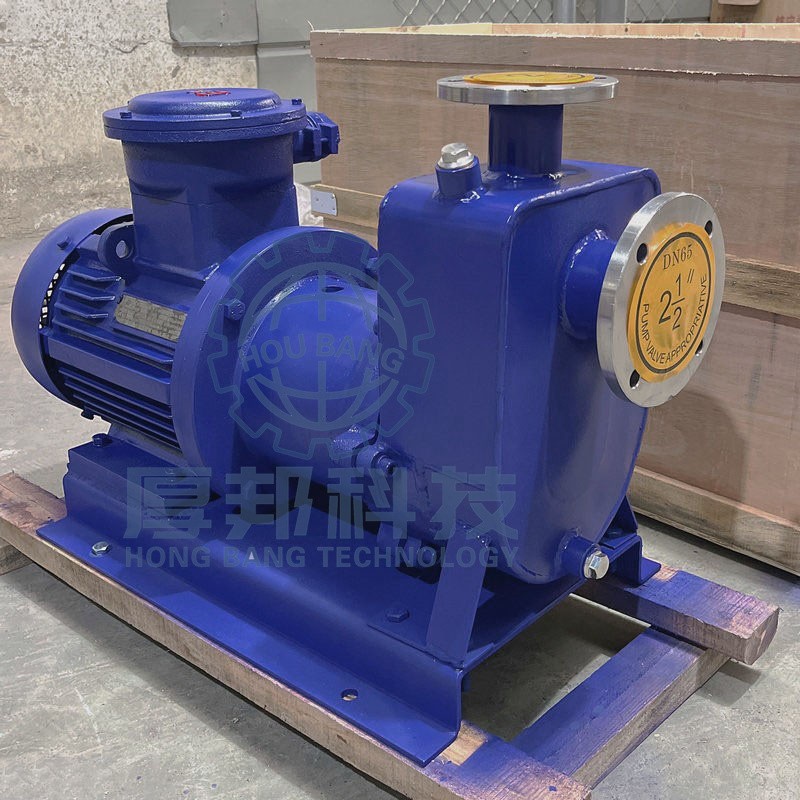

ZCQ type self-priming magnetic drive pump is a new technology in absorbing foreign CQ-type magnetic drive pump on the basis of user requirements, and engineering and technical personnel of the unit after repeated research and test the success of new products. Magnetic drive principle with mixed structure, compared with ordinary centrifugal pumps, self-priming to reflect, to facilitate remote centralized control, the implementation of automated operation, it is widely used, especially for those who pump installation position above the surface of the occasion, self-priming magnetic pump is preferred.
The pump both CQ type magnetic pump fully sealed, no leaks, corrosion-resistant characteristics. And set in a self-priming, bottom valve and cited without irrigation, self-priming height of 4 meters, can be widely used in petroleum, chemical, pharmaceutical, electroplating, printing and dyeing, food, research and other units pumping acids, alkalis, oils and rare and precious liquid, venom, volatile liquid, and circulating water equipment, particularly susceptible to leakage, flammable, explosive liquid pumping.
Performance
Flow: 3 - 60 m3/h
Head: 12-50 m
Size.: DN20-DN100 mm
Pump Material: Stainlee Steel 304, 316, 316L
Liquid Temperature: ≤100 ℃
Features
The pump has compact structure, beautiful appearance, volume, low noise, reliable operation, easy use and maintenance, and can be widely used in petroleum, chemical, pharmaceutical, electric heavy liquid, venom, volatile liquid, as well as circulating water equipment, especially easy to leak, flammable, explosive liquid pumping.

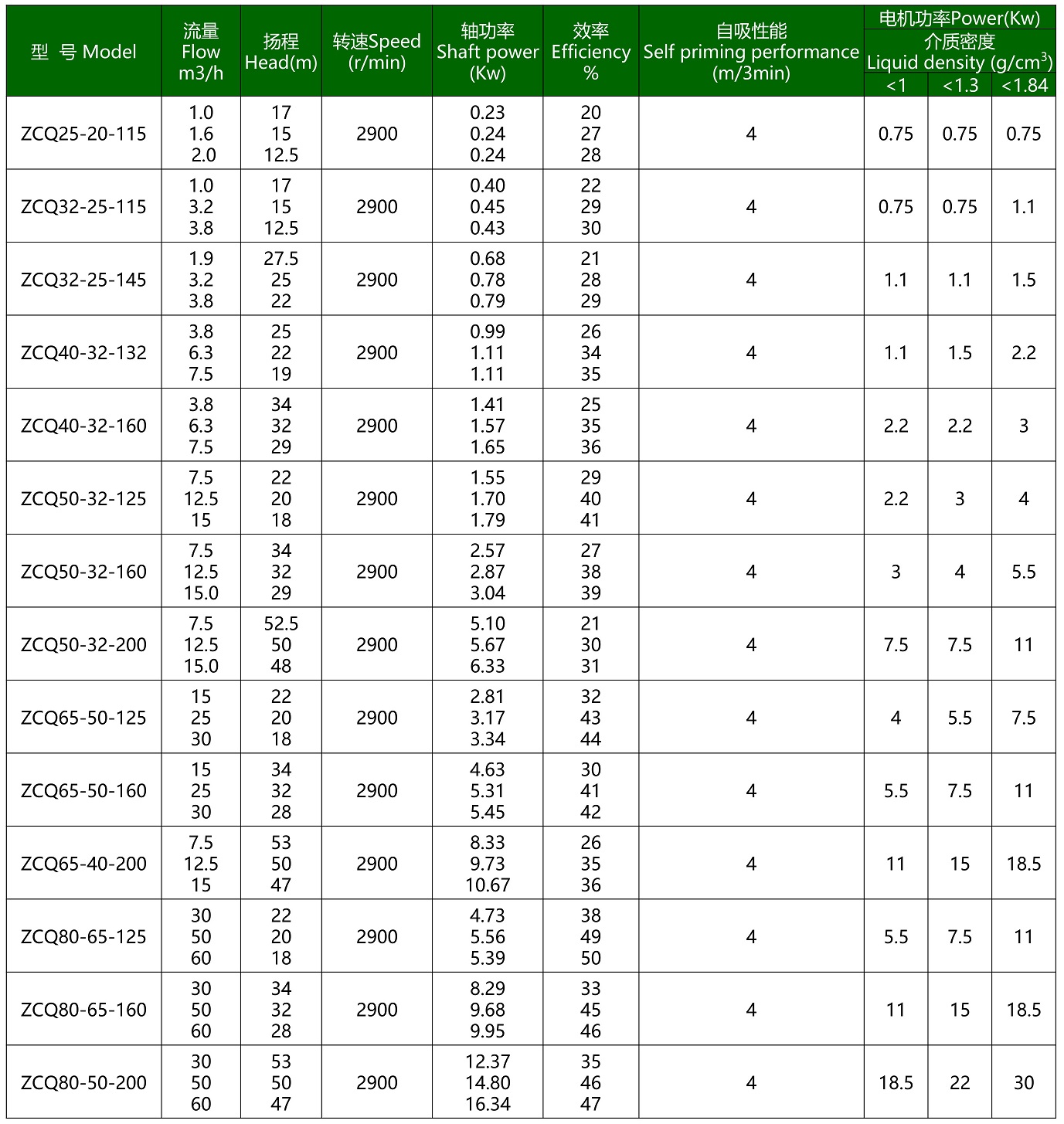

Technical Specification
